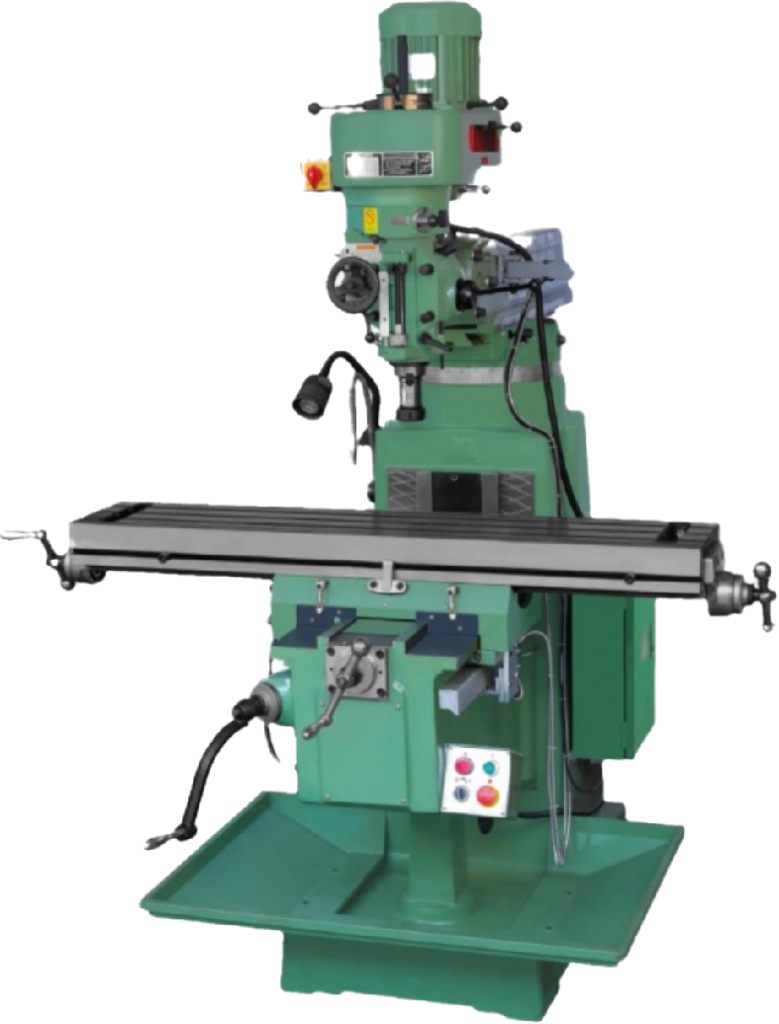

Vertical Milling Machine Model : YVM-4S

The YVM-4S Vertical Milling Machine delivers exceptional precision, efficiency, and reliability for milling tasks across diverse industries. Designed for robust and versatile operations, this machine is equipped with high-precision features to handle a wide range of materials and tasks.

The YVM-4S Vertical Milling Machine is a comprehensive and durable solution for demanding machining needs, offering unparalleled performance and versatility.

Precision and Build Quality

  • High-precision 3-axis movement with hardened ground lead screws and double nuts for reduced deformation and smooth operations.



Vertical Milling Machine Model : YVM-4S
Technical Specifications
Feature Specification
Table Size 1270 x 254 mm
T-Slot 3 slots, 16 mm width each
Maximum Table Load Capacity 330 Kgs
Longitudinal Travel (Manual/Auto) 750 mm
Cross Travel (Manual/Auto) 400 mm
Vertical Travel (Manual/Auto) 400 mm
Ram Travel 590 mm
Spindle Taper ISO 40/ISO 30
Quill Travel 100 mm
Power Down Feed 0.04 / 0.08 / 0.05 mm/rev
Speed Range (Low) 66 to 2270 RPM
Speed Range (High) 130 to 4540 RPM
Distance from Spindle to Tabletop 500 mm
Distance from Spindle to Column ≥ 375 mm
Head Movement 90° Left to Right, 45° Front to Back
Longitudinal & Cross Rapid Feed ≥ 550 mm/min
Vertical Rapid Feed ≥ 560 mm/min
Number of Power Feeds 3
Motor Power 3 HP

Standard Accessories

  • Chip Collecting Tray
  • Swivel Milling Vice (150 mm)
  • Keyless Drill Chuck (16 mm)
  • Micro Boring Head with Shank
  • 52-piece Clamping Kit
  • Coolant Pump with Fittings
  • Halogen Machine Lamp
  • Centralized Lubrication System
  • Set of Bellows (2 pieces)
  • Tool Kit with Box containing
  • Standard Cutting Tools Set for Initial Operation
  • ISO 40/30 Adapter with a set of Collets (3 mm to 25 mm, 1 mm step x 23 pieces)
