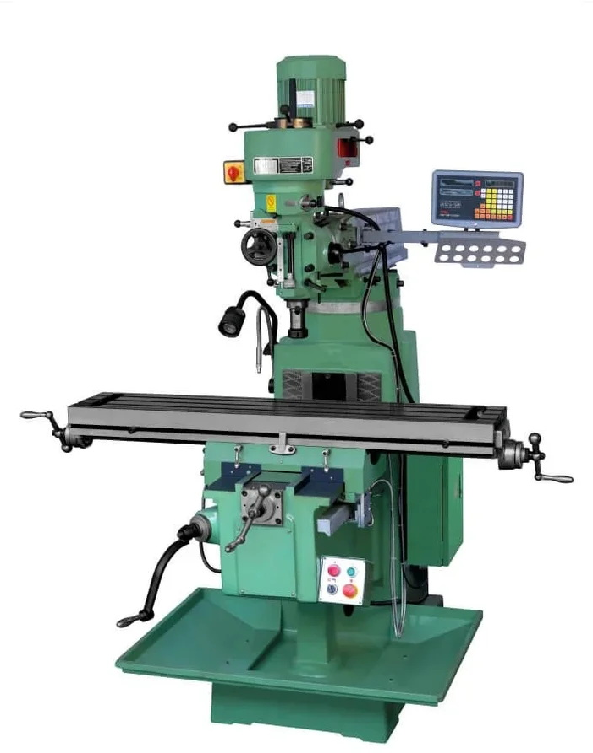

Vertical Milling Machine Model : YVM-4D

The Vertical Milling Machine is a robust and high-precision machine designed for diverse industrial applications. With advanced features and versatile functionality, this machine ensures accurate milling operations while maintaining high standards of reliability and durability.

Highlights :

  • High-precision 3-axis movement with hardened ground lead screws and double nuts for reduced deformation.
  • Swivel head for versatile operations (± 45°).
  • Advanced safety features and smooth operational controls.
Vertical Milling Machine Model : YVM-4D
Technical Specifications
Feature Specification
Table Size (L x W) 1270 x 254 mm
T-Slots 3 No, 16 mm wide, 60-65 mm distance
Longitudinal Travel (Manual/Auto) 900 mm
Cross Travel (Manual/Auto) 375 mm
Vertical Travel (Manual/Auto) 400 mm
Ram Travel 590 mm
Safe Table Load Capacity 330 Kg
Spindle Taper ISO 30
Vertical Quill Movement 125 mm
Spindle Speed Range (RPM) Low: 50 to 2250, High: 130 to 4540
Spindle Rated Power ≥ 3 HP
Spindle Nose Centering Runout ≤ 0.01 mm
Spindle Taper Bore Runout (Nose) ≤ 0.01 mm
Spindle Taper Bore Runout (300 mm) ≤ 0.02 mm
Distance Spindle to Table 40-500 mm
Distance Spindle to Column 375-400 mm
Longitudinal & Cross Rapid Feed ≥ 550 mm/min
Vertical Rapid Feed 400 mm/min
Maximum Feed Force ≥ 24 KN
Power Feeds 3 Minimum
Main Motor 2.5 kW / 1500 RPM
Feed Motor 1 kW / 1500 RPM
Power Supply 3-Phase, 420V ±10%, 50 Hz
Head Movement 45 ± 5°

Standard Accessories

Tooling and Clamping:

  • Draw Bolts with Nuts: 4 Nos.
  • Swivel Machine Vice with Handle: 2 Nos.
  • Self-Centering Vice (Jaw Opening: 10-80 mm): 1 No.
  • 3-Axis DRO with Optical Linear Scale for X, Y, and Z Axis (5-micron resolution).
  • Arbor with Face Cutters: Ø32, Ø40, Ø63, Ø80 mm (2 each).
  • Carbide Inserts: 20 pieces with key.

Collets and Holders:

  • Spring Collet Adaptor (ER 32, Ø4-20 mm) with “C” Spanner.
  • Conical Collet Set (Ø5-20 mm) with “C” Spanner.
  • End Mill Holders: Ø5, Ø6, Ø8, Ø10, Ø16, Ø20 mm.
  • Reduction Sleeve Type B (MT1, MT2, MT3, MT4).

Special Attachments:

  • Universal Dividing Head (135 mm) with Tailstock, Supporting Block, and 3-Jaw Chuck (Ø160 mm).
  • Vertical Spindle Head Attachment.
  • Rotary Vice/Table (Ø300 mm, 360° rotation).
I am interested

Optional Accessories:

  • Coolant Pump with Splash Guard and Fittings.
  • Halogen Machine Lamp.
  • Centralized Lubrication System.
  • Anti-Vibration Pads.
  • Elevating Crank Handle.
  • Clamping Kit (52 Pcs).
  • Bellows: 2 Pcs.
  • Tool Kit with Box.
  • Micro Boring Head with Shank.
