Radial Drill Machine

Wholesale Trader of a wide range of products which include 40mm Radial Drilling Machine, 25mm Radial Drilling Machine, Heavy Drilling Machine and Radial Drilling Machine.

CORE FEATURES OF YOGI

  • Super powerful
  • Easy to use
  • Robust construction
  • High durability
  • Superior performance
  • Longer service life.
General Technical Specification
Model Name/Number YRD-25 YRD-40
Brand Yogi Yogi
Drilling Capacity in MS 25 mm 40 mm
Drilling Capacity in CI 30 mm 45 mm
Spindle Speed 110-2880 RPM 88-2600 RPM
Spindle Travel 200 mm 250 mm
Box Table Size 250 x 205 x 205 mm 300 x 300 x 385 mm
Column Diameter 127 mm 140 mm
Spindle Nose MT-4 MT-4
No. of Spindle Speed 8 8
Diameter of Ram 72 mm 78 mm
Max. Drilling Radius 910 980
Dist. from Spindle to base 810/130 (Max/Min) 850/250 (Max/Min)
Dist. from Column to Spindle 620/350 905/385
Drilling Head Motor 1 HP 2 HP
Lifting arm Motor 0.5 HP 0.5 HP
V-BELT Section B-40 & B-23 B-40 & B-23
Machine Measurement 1020 x 810 x 1830 mm 1350 x 660 x 2080 mm
Approx Weight 425 Kg 900 Kg
Body Material Mild Steel Mild Steel

With Standard Accessories :

  • Motor Pulley
  • Drill Machine Table

 Optional Accessories :

  • Motor 1 HP & 0.5 HP
  • Motor V Belt
  • Drilling Chuck & Arbor
  • R/F & U/D Switch
  • Coolant Pump & Tank

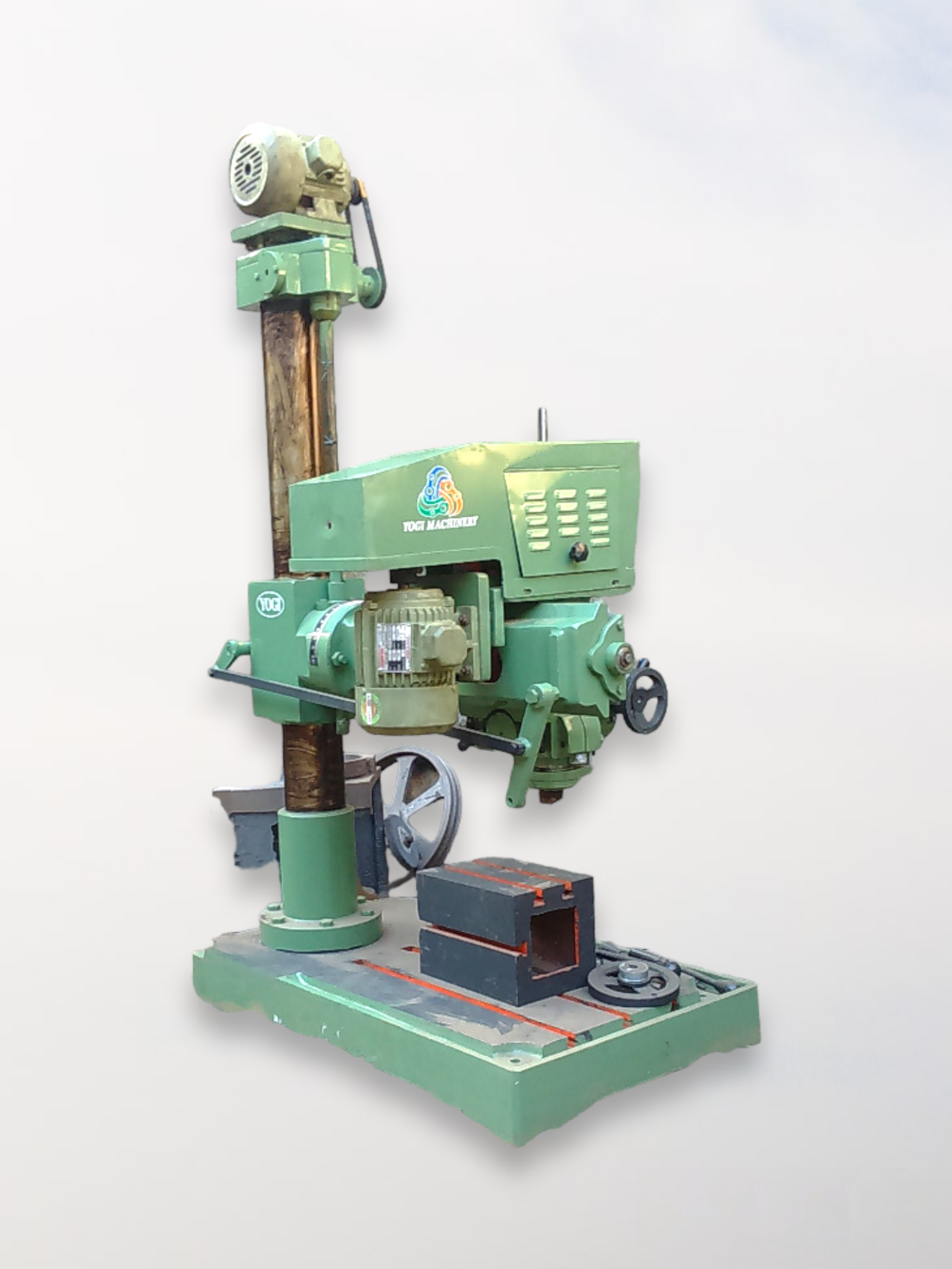

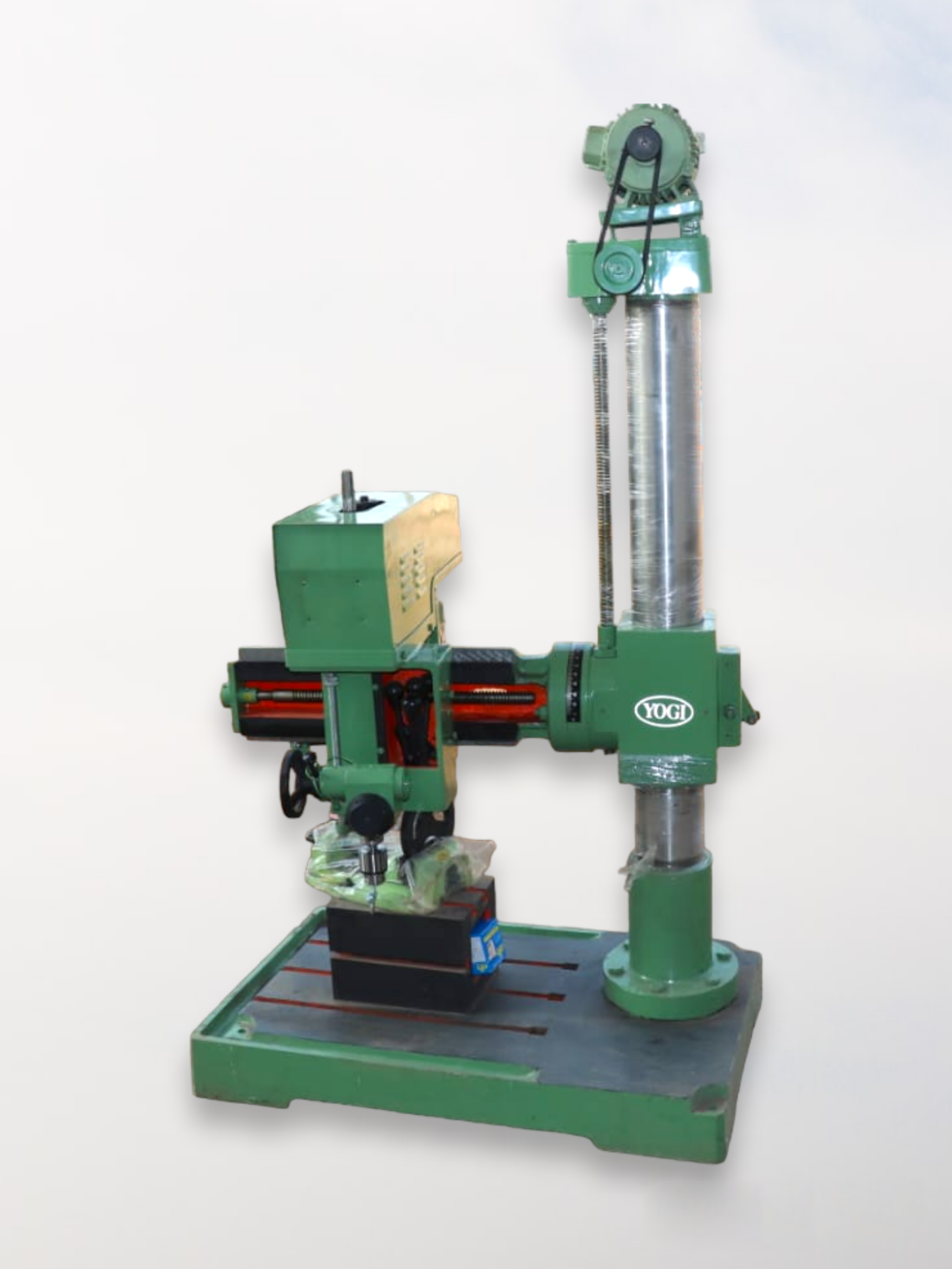

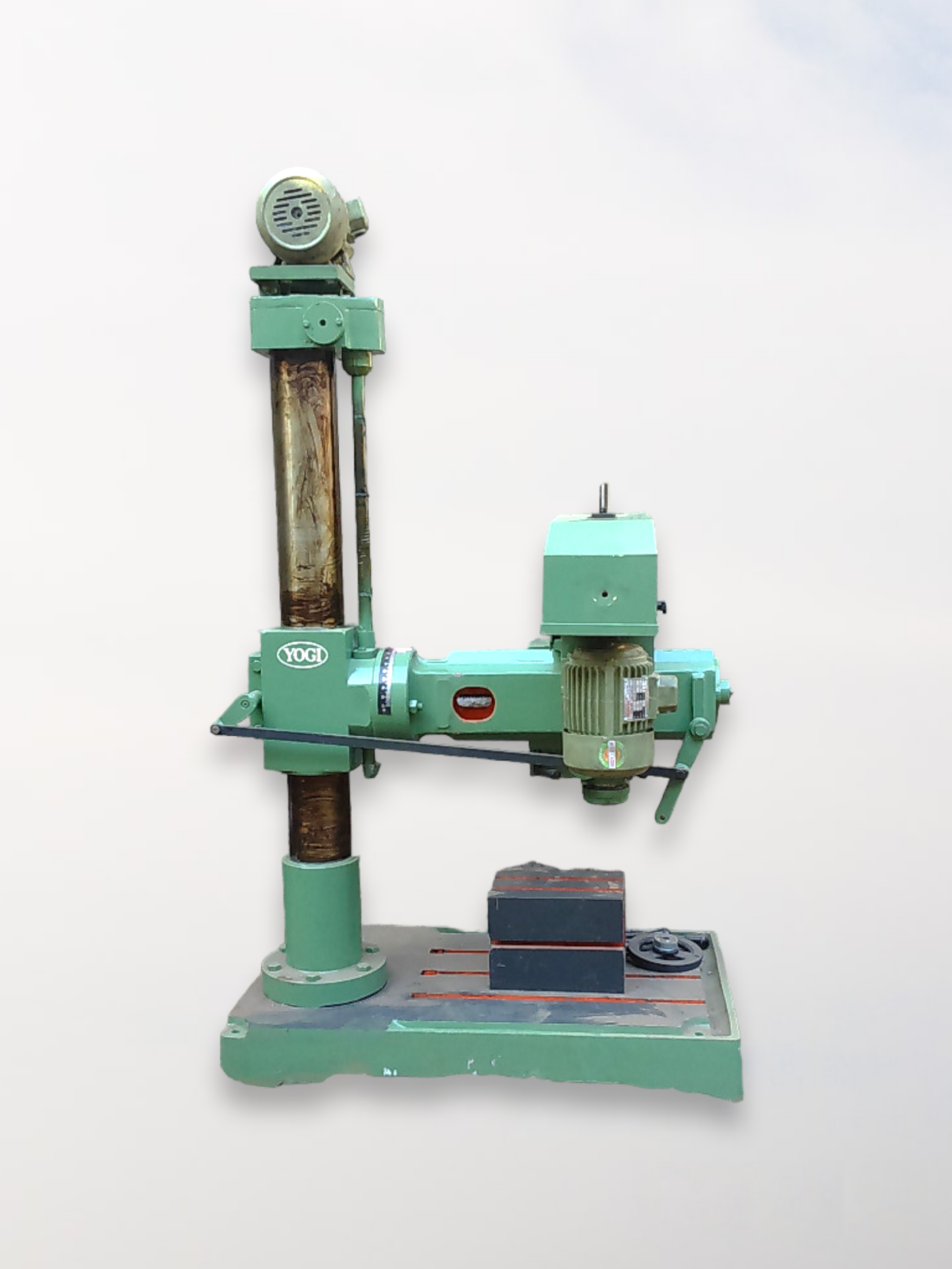

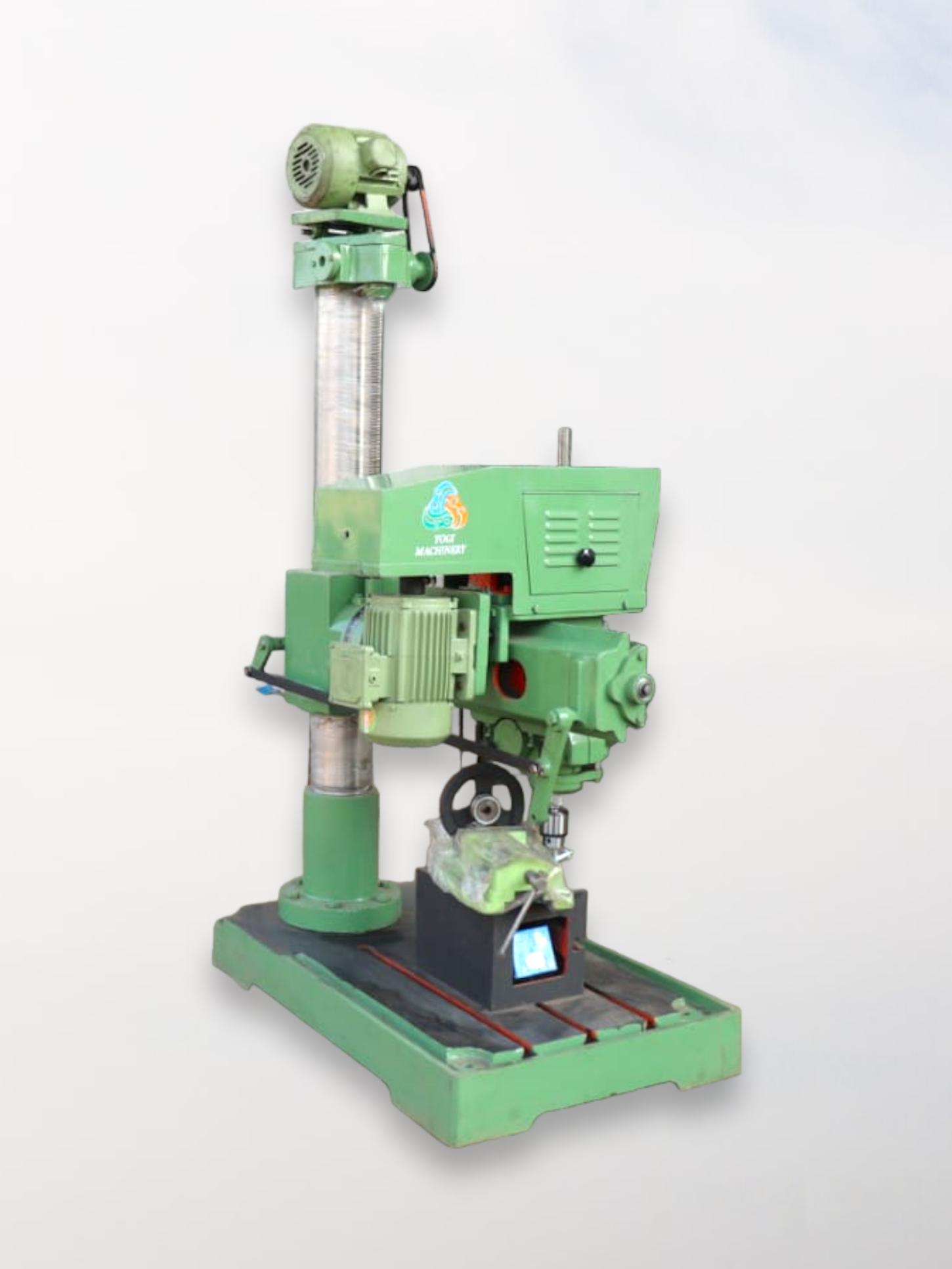

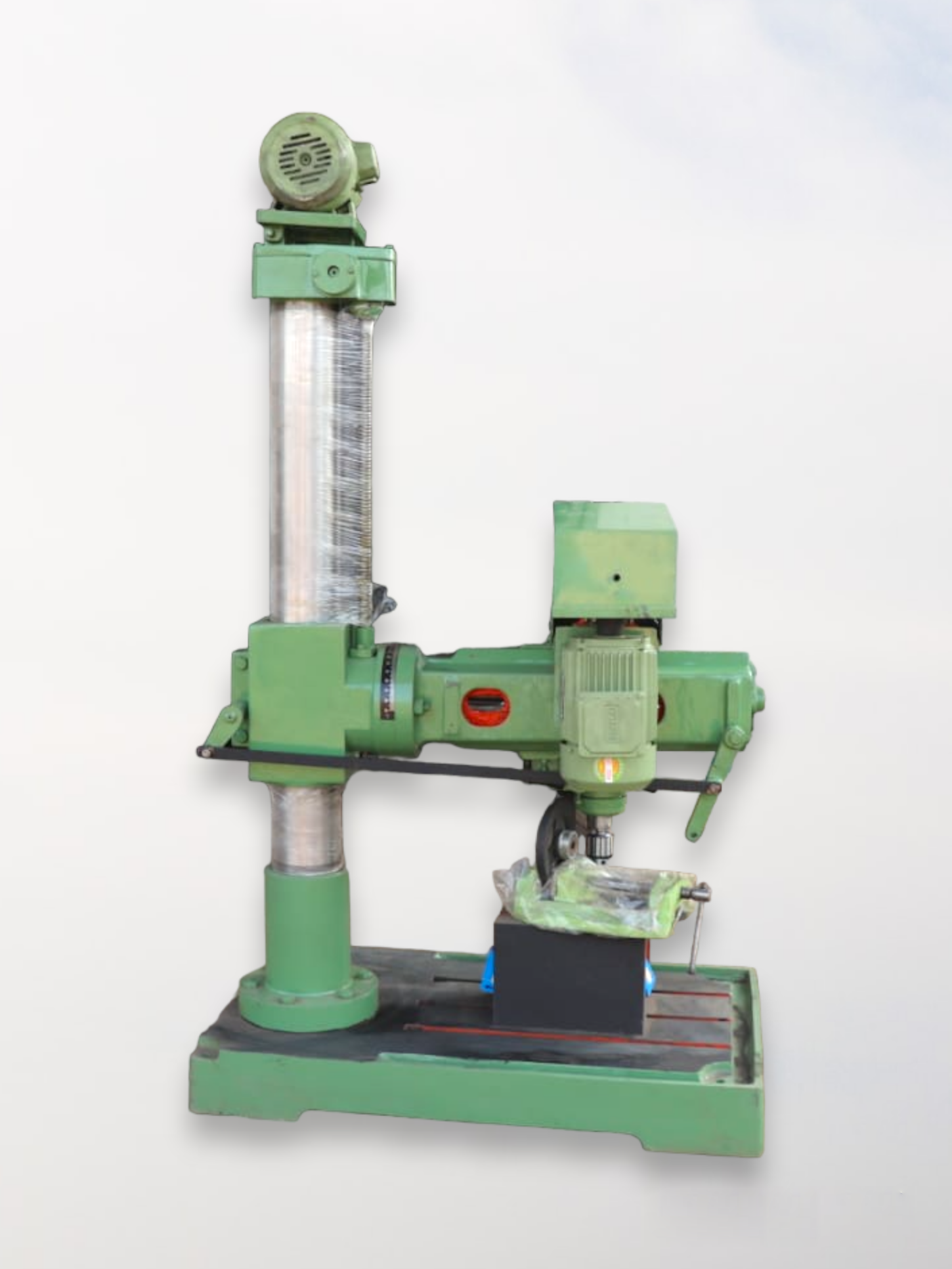

Radial Drill Machine 25 MM (1 Inch)
Model Name/Number YRD-25
Brand Yogi
Drilling Capacity in MS 25 mm
Drilling Capacity in CI 30 mm
Spindle Speed 110-2880 RPM
Spindle Travel 200 mm
Box Table Size 250 x 205 x 205 mm
Column Diameter 127 mm
Spindle Nose MT-4
No. of Spindle Speed 8
Diameter of Ram 72 mm
Max. Drilling Radius 910
Dist. from Spindle to base 810/130 (Max/Min)
Dist. from Column to Spindle 620/350
Drilling Head Motor 1 HP
Lifting arm Motor 0.5 HP
V-BELT Section B-40 & B-23
Machine Measurement 1020 x 810 x 1830 mm
Approx Weight 425 Kg
Body Material Mild Steel
I am interested

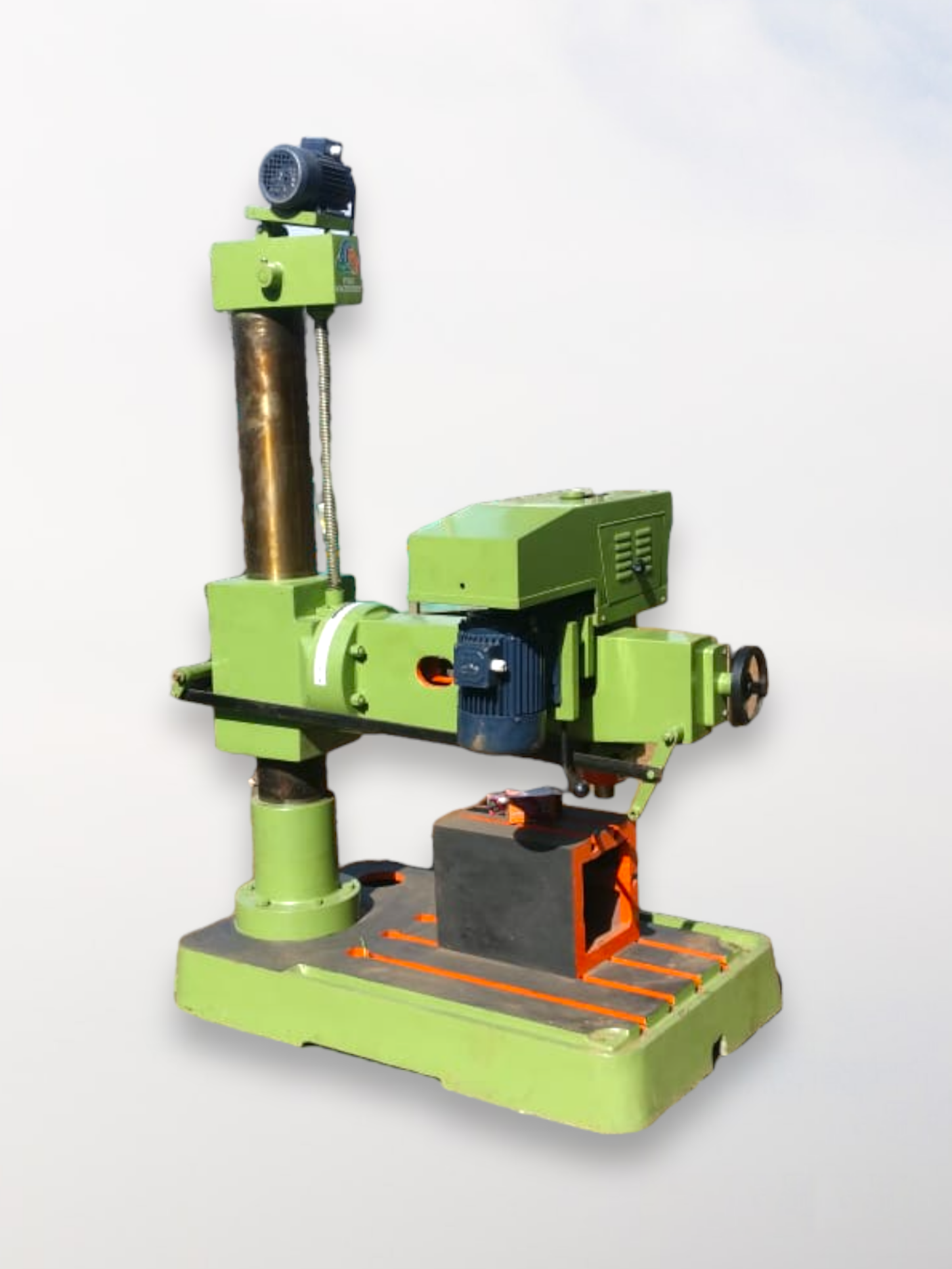

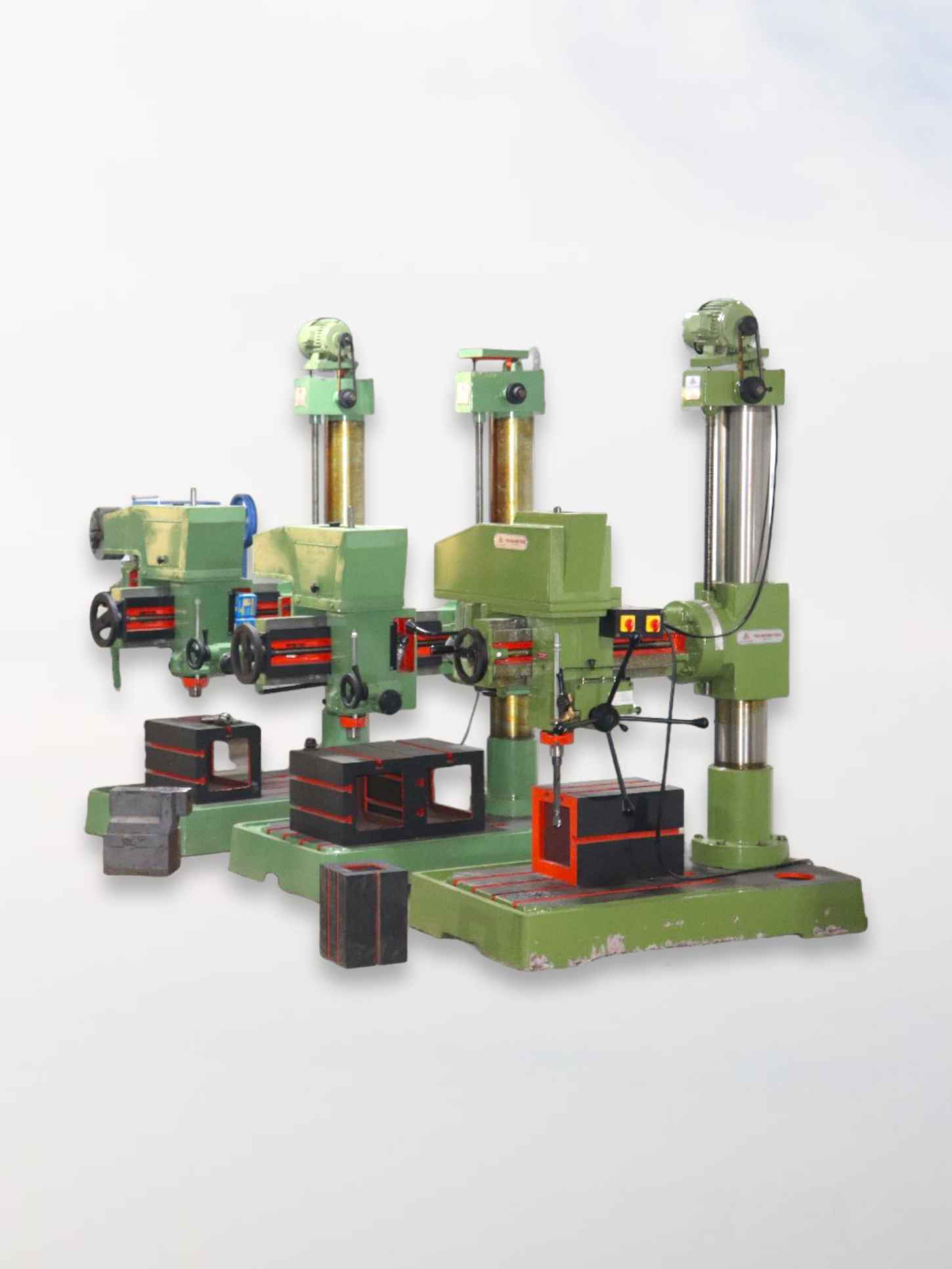

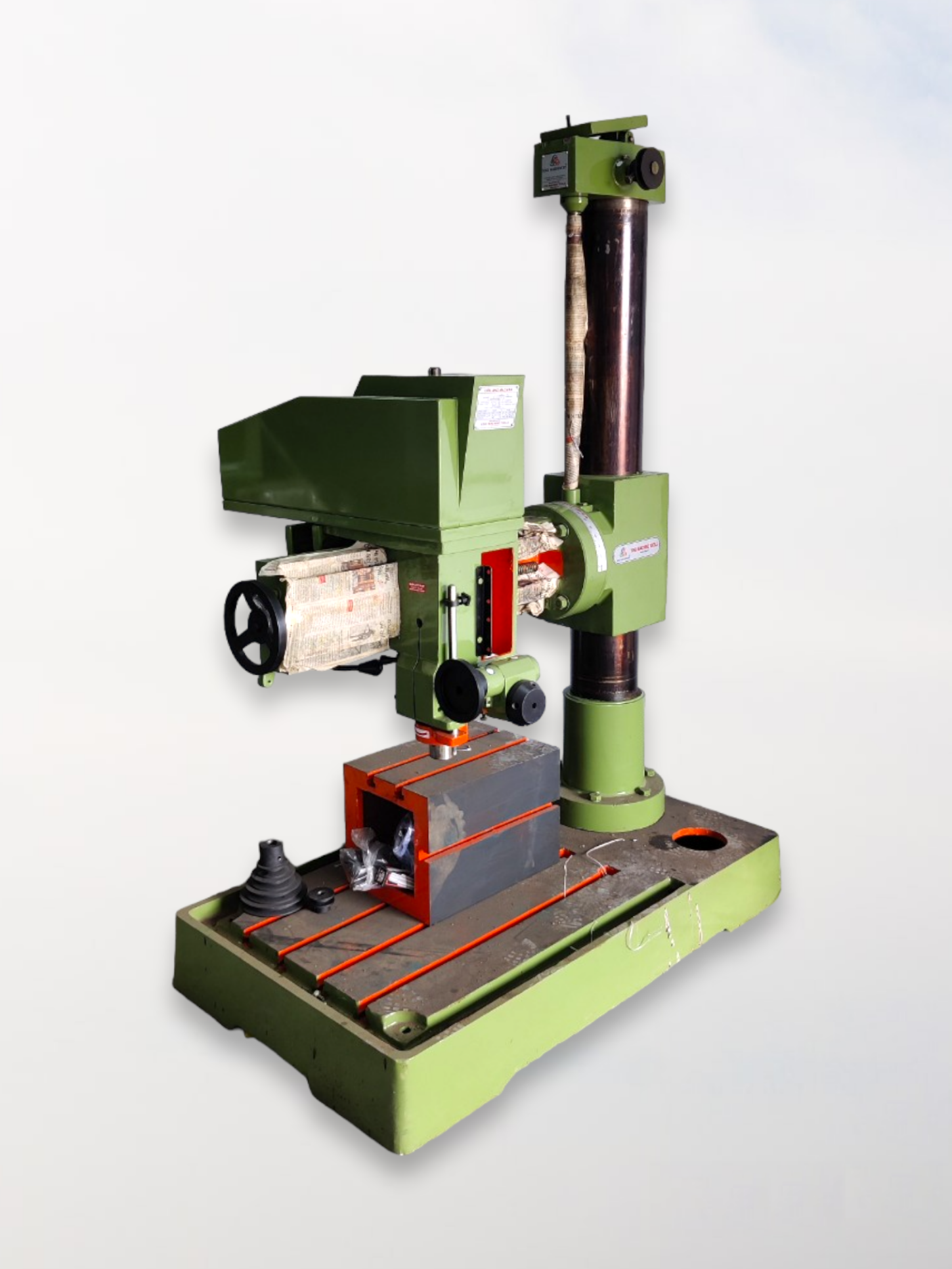

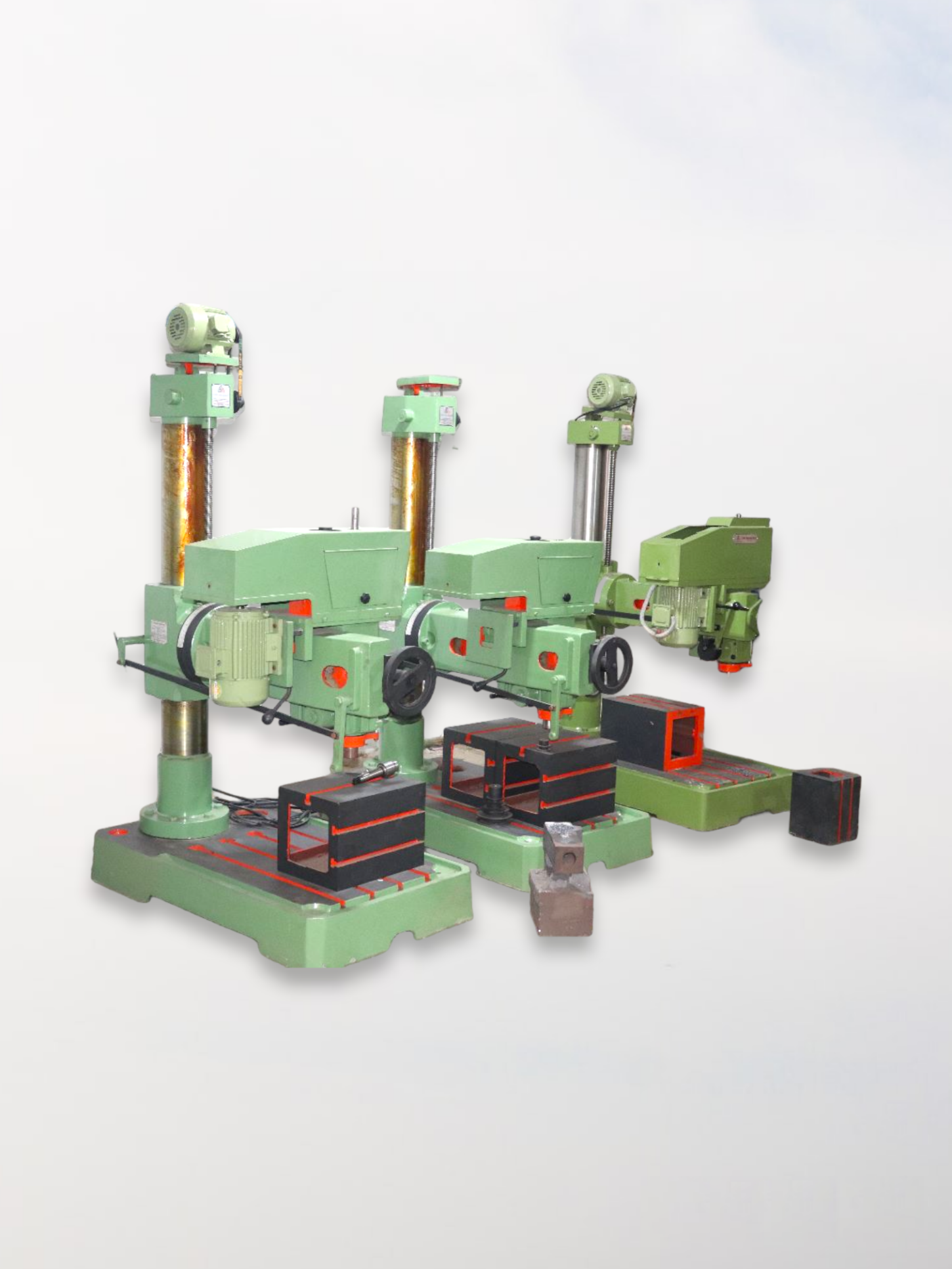

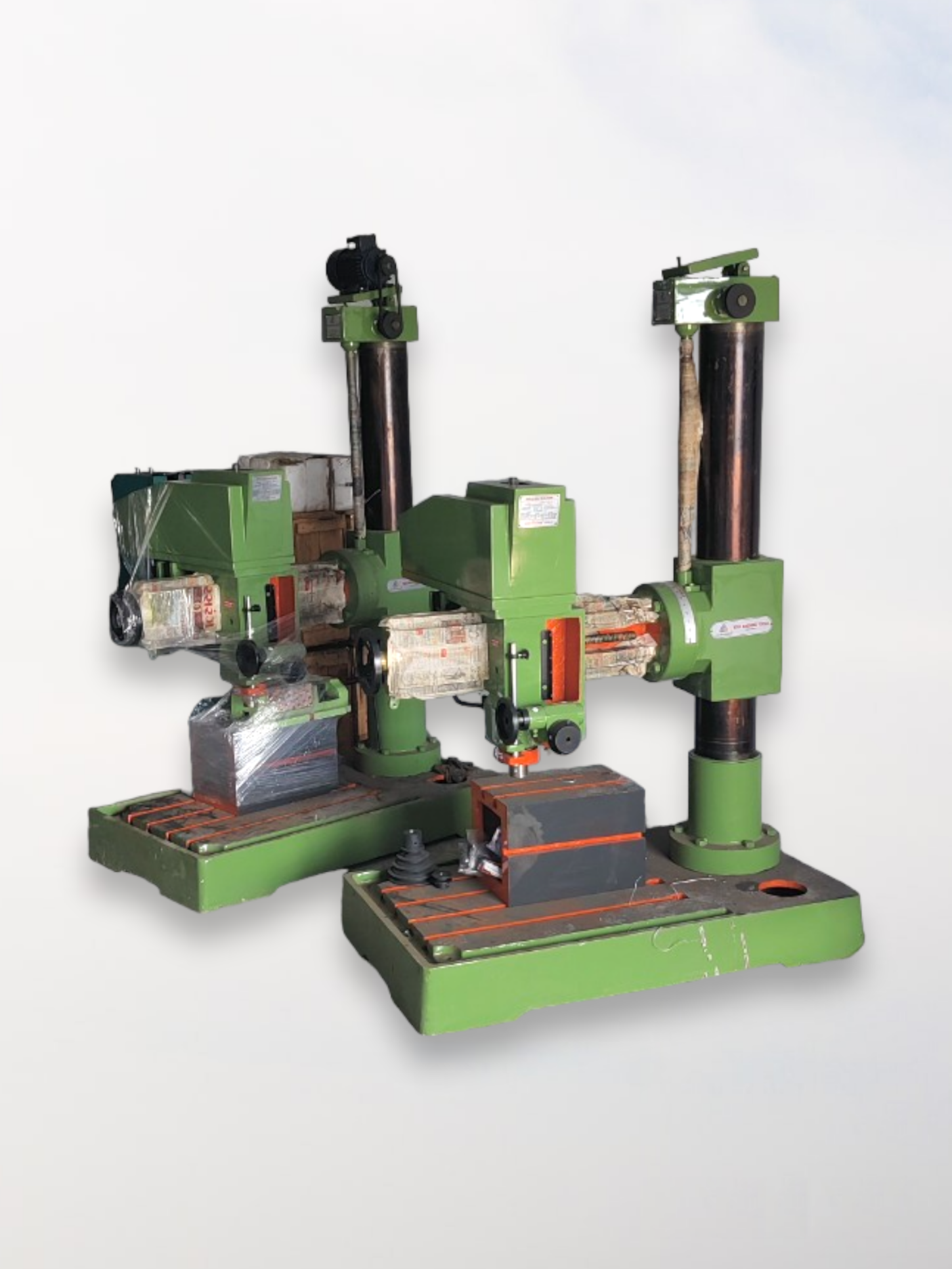

Radial Drill Machine 38 MM (1.5 Inch)
Model Name/Number YRD-40
Brand Yogi
Drilling Capacity in MS 40 mm
Drilling Capacity in CI 45 mm
Spindle Speed 88-2600 RPM
Spindle Travel 250 mm
Box Table Size 300 x 300 x 385 mm
Column Diameter 140 mm
Spindle Nose MT-4
No. of Spindle Speed 8
Diameter of Ram 78 mm
Max. Drilling Radius 980
Dist. from Spindle to base 850/250 (Max/Min)
Dist. from Column to Spindle 905/385
Drilling Head Motor 2 HP
Lifting arm Motor 0.5 HP
V-BELT Section B-40 & B-23
Machine Measurement 1350 x 660 x 2080 mm
Approx Weight 900 Kg
Body Material Mild Steel
