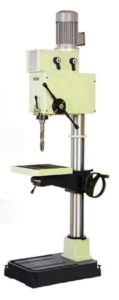

Pillar Drill Machine Model : YAPD-20

This Pillar Drill Machine is engineered for precision and efficiency in drilling operations, suitable for steel and other materials. With a robust build, advanced features, and essential accessories, it is ideal for industrial and workshop use.

Performance and Build

  • Durability: Built with a robust gear drive for high-performance and long-lasting operation.
  • Precision: Designed for smooth manual spindle travel and accurate   drilling operations.
  • Versatility: Capable of drilling, tapping, and boring with additional attachments.
  • Efficiency: Optimized for high-speed performance with a wide spindle speed range.
Pillar Drill Machine Model : YAPD-20
Technical Specifications
Feature Specification
Type Gear Drive with Manual Spindle Travel
Drilling Capacity (Steel) 20 mm
Tapping Capacity M14 or better
Cutting Speed 8 m/min
Clamping Area 260 x 260 mm
Pillar Length 1170 mm
Pillar Diameter 74 mm
Distance Spindle to Base 915 mm
Distance Spindle to Pillar 205 mm
Worktable Type Rectangular
Maximum Job Weight 25 kg
T-Slots Size 14 mm
T-Slot Spacing 10 mm
Horizontal Travel 200 mm/min
Spindle Speed Range 50 – 2050 RPM
Motor 1 HP (3-Phase)
Coolant Pump Output 0.15 HP, 3-Phase
Machine Vice 80 mm Fixed Base



Standard Accessories

  • Drill Chuck With Arbor and Key
  • Tapping Attachment
  • Boring Head
  • Coordinate Table
  • Drill Reduction Sleeves Set: MT 4-3, MT 4-2, MT 4-1
  • Quick Change Drill Chuck With Drill Collets
  • Machine Lamp
  • Drill Drift
