Pillar Drill Machine

We are manufacturer and supplier of Pillar Drill Machine 13 MM, Pillar Drill Machine 19 MM, Pillar Drill Machine 25 MM, Pillar Drill Machine 40 MM in all over India and Out of India at best price and high quality.

Pillar drills have special preference in industries when it comes to precise drilling. We present these tools in different models and different boring capacities to meet industrial machining standards.

We provide high precision pillar drill machine for boring heavy duty work materials. Considering the wider industrial requirements for boring and similar machining purposes

CORE FEATURES OF YOGI

  • Parts Properly Balanced
  • Prior Assembling of Main Gear & Pully
  • Parts finished on imported Grinding M/c.
  • All Moving Parts Finished to Close Tolerance.
  • Main Spindle & Pinon are Made out of EN Forged Steel.
  • Spindle Ram is made out of Alloy Steel.
Pillar Drill Machine 13 MM (0.5 Inch)
Model YP-13
Drilling Capacity (mm) 13
Pillar Dia. (mm) 47
Spindle Nose Solid
Spindle Travel (mm) 75
Spindle Centre To Pillar Surface (mm) 155
No. Of Spindle Speed 4
Spindle Speed (RPM) 500 – 2800
Table Size (mm) 205 x 205
Base Size (mm) 365 x 365
Base To Spindle Nose (mm) 445
Main Motor Power (HP) 0.5
I am interested

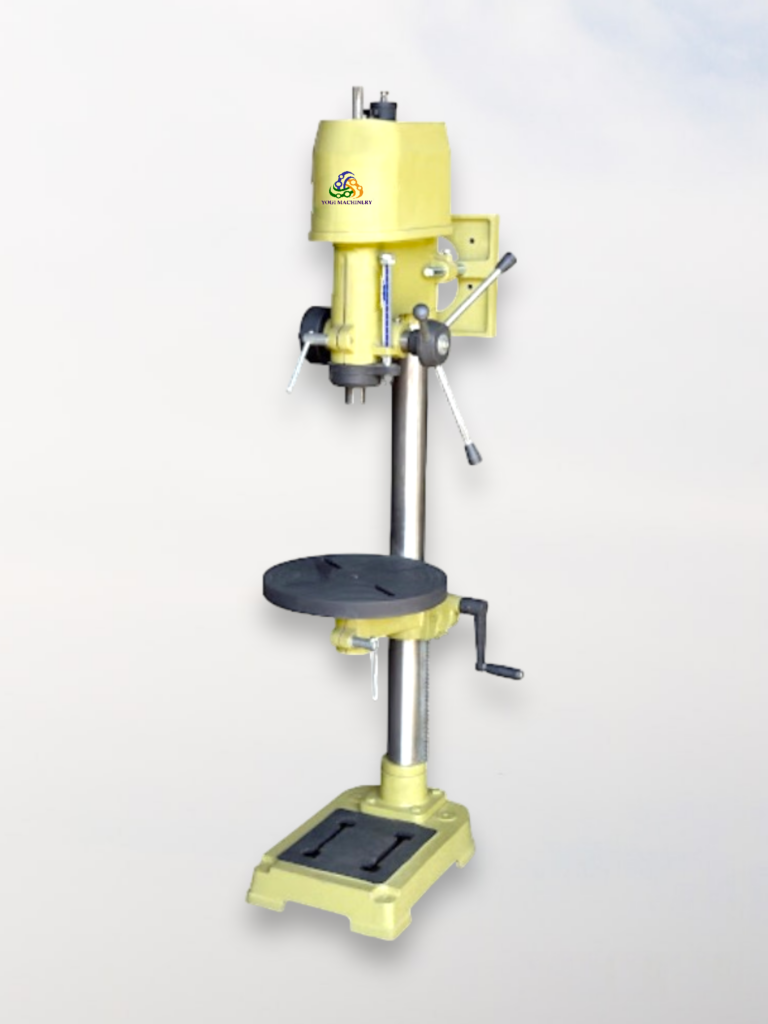

Pillar Drill Machine 20 MM
Model YP-20
Drilling Capacity (mm) 20
Pillar Dia. (mm) 75
Spindle Nose MT-2
Spindle Travel (mm) 125
Spindle Centre To Pillar Surface (mm) 200
No. Of Spindle Speed 8
Spindle Speed (RPM) 87 – 3200
Table Size (mm) 280×280
Base Size (mm) 460×315
Base To Spindle Nose (mm) 925
Main Motor Power (HP) 1
I am interested

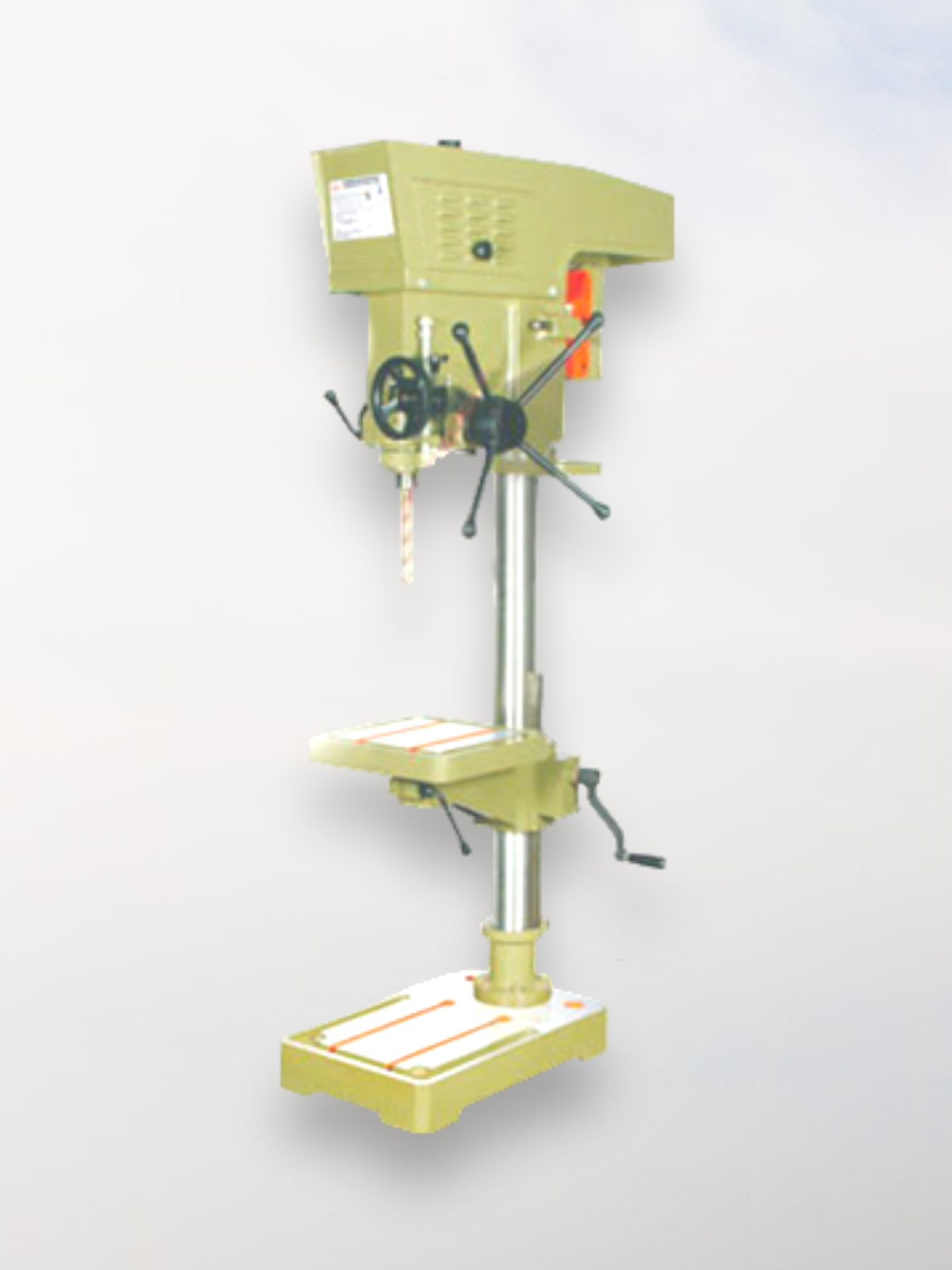

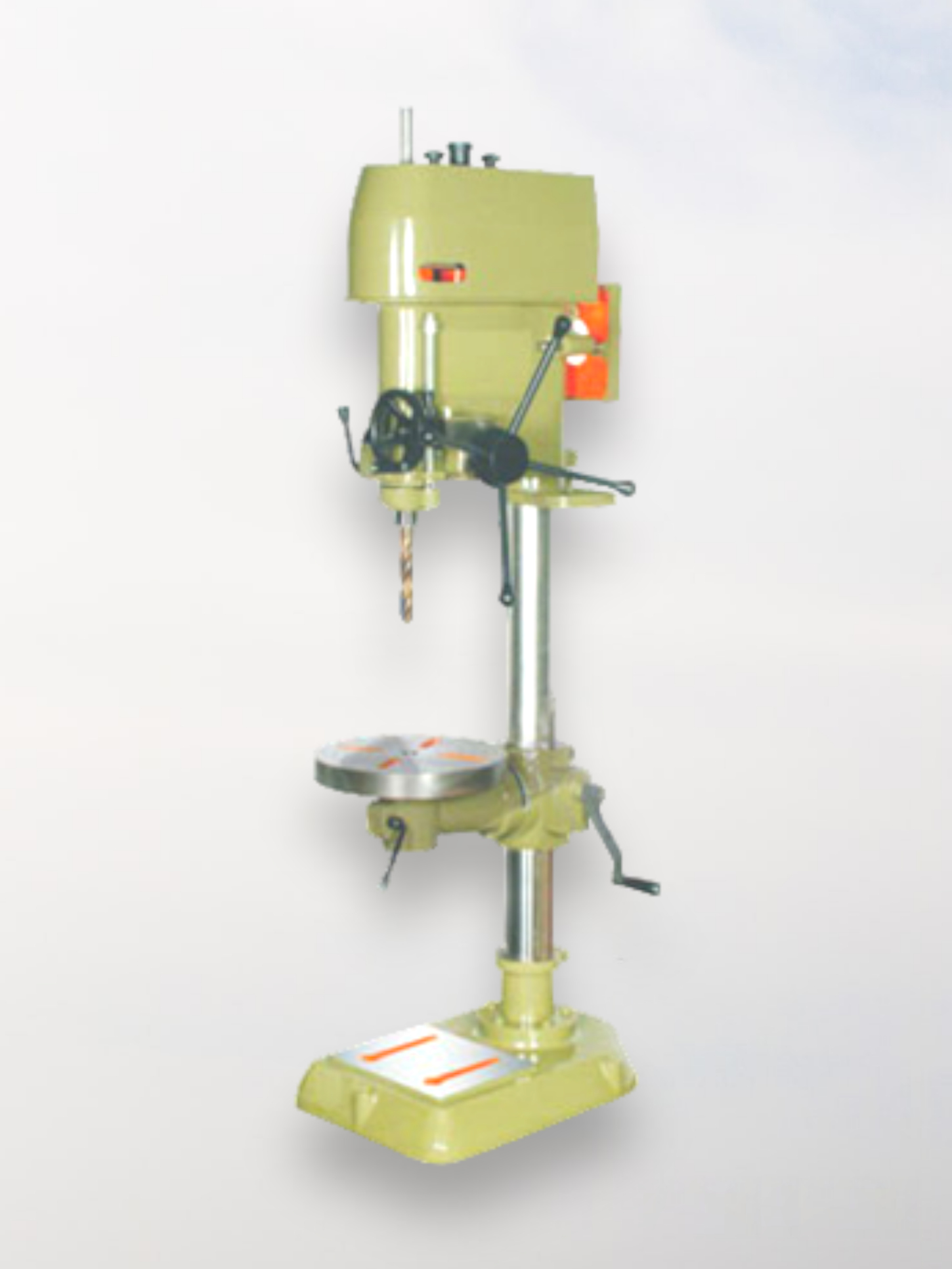

Pillar Drill Machine 25 MM
Model YPD-25
Machine Capacity (MM) 25 MM
Column Diameter (MM) 92 MM
Center of Spindle to Column (MM) 250 MM
Distance Spindle to Table (MM) 660 MM
Distance Spindle to Base (MM) 1045 MM
Distance from Spindle Centre to Column 250 (max)
Table Travel 480 MM
Spindle Nose MT-3
Spindle Travel (MM) 180 MM
Range of Spindle Speed (RPM) 130-2600
No. of Spindle Speed 8
I am interested

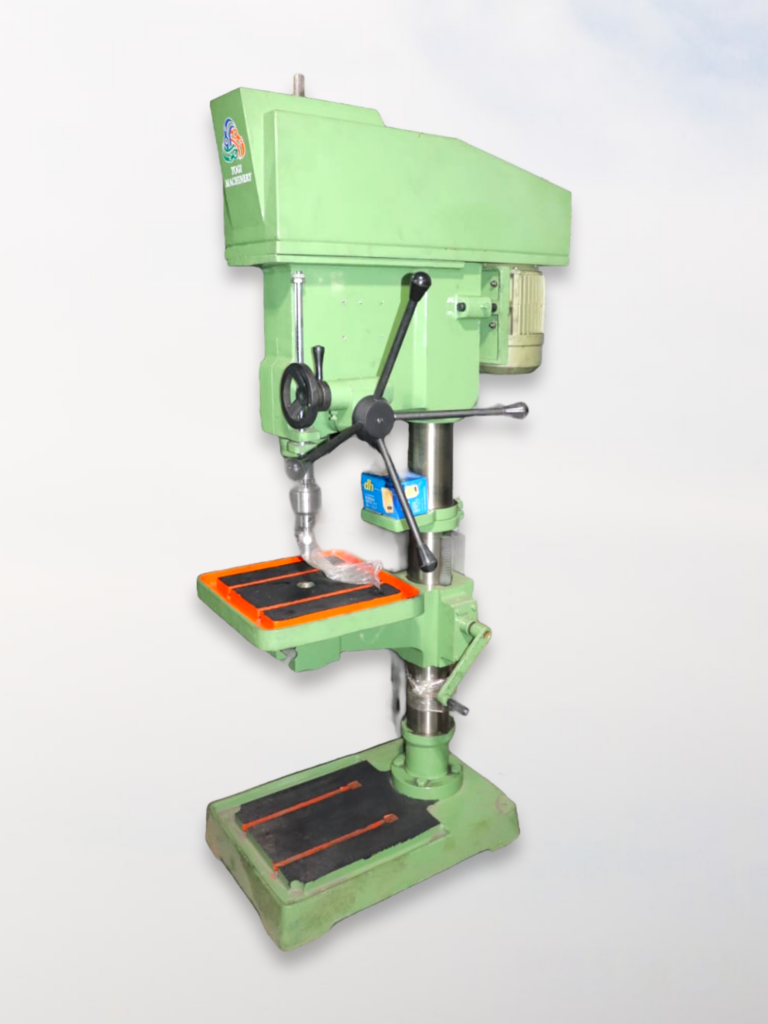

Pillar Drill Machine 40 MM
Machine Capacity 40 mm
Column Diameter 130 mm
Centre of Spindle to Column 305 mm
Distance Spindle to Table 515 mm
Distance Spindle to Base 1040 mm
Spindle Nose MT – 4
Spindle Travel 215 mm
Range of Spindle Speed 75 / 2070 RPM
No. of Spindle Speed 8
Range of power feed Manual
Table size 435 x 435 mm
Base size (machined area) 490 x 470 mm
V-Belt Section B – 62
Overall Height with guard 1830 mm
Main Electrical Motor 1.5 HP
