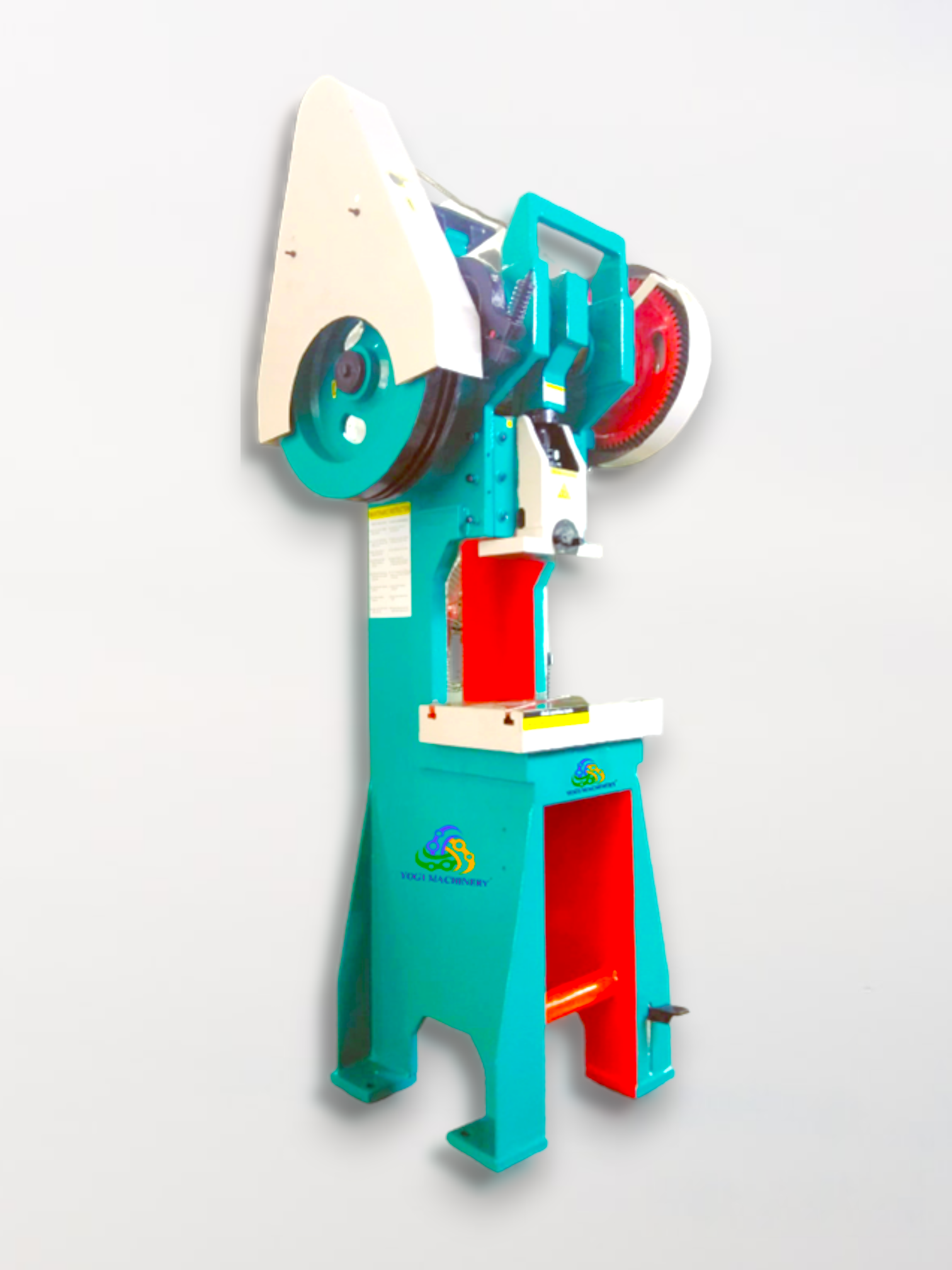

Mechanical C Type Power Press Machine

We are manufacturer and deliver Mechanical C Type Power Press Machine at your location. Please share some more details about your requirement in Ton Capacity. Like Power Press 3 Ton, Power Press 5 Ton, Power Press 10 Ton, Power Press 20 Ton, Power Press 30 Ton, Power Press 50 Ton, Power Press 80 Ton, Power Press 100 Ton, Power Press 150 Ton etc. as per the requirement

Silent Features:

Frame: The Frame Is Made From Steel Construction And Their Heavy Cross Section And Rigid Design Assured Minimum Deflection And Accurate Alignment.

Crank Shaft: Crank Shaft Made From Special Alloy Steel To With Stand The Effective Load, It Is Fitted With Gun Metal Bushes For Smooth Working With High Accuracy.

Gears & Clutch: The Gears Are Made From Cast Steel And Its Tee The Are Generated By Hobbing The Clutch Is Provided Of Pin / Rolling Key Type, It Is Also Rigid And Well Supported For The Mass Production. Clutch Can Give Continuous Stroke.

Flywheel: The Flywheel Is Made From Graded Cast Iron For Strength And Is Balanced For Efficient And Releasing Adequate Energy For The Pressing Operations.

Table & Ram: Table And Ram Are Made From High Grade Heavy Duty Cast Iron & Properly Seasoned. They Are Perfectly Aligned To Match Each Other To Obtain High Accuracy & Precision Press Operation.

Lubrication: A Lubrication System Has Been Provided For Lubrication The Sliding Surface And Moving Parts.

Features

  • User Friendly Operation
  • Low Maintenance
  • High Performance
  • Heavy Duty
General Technical Specification
Technical Description 3 Ton 5 Ton 10 Ton 20 Ton 30 Ton 50 Ton 80 Ton 100 Ton 150 Ton
Crank Shaft Dia. 45 50 57 65 70 100 120 130 150
Stroke Adjustment 3-25 6-38 6-50 10-75 10-75 12-100 12-112 12-125 12-140
Hole in Ram 19 25 25 32 38 45 51 51 62
Hole in Bed 50 63 75 89 100 115 125 140 152
Length and Width Of Bed 254×152  300×203 406×254 508×300 560×355 609×406  660×457  850×508  912×559
Dist. Bed to Ram 152 203 254 300 355 406 457 475 475
Fly Wheel Dia
Ungeared 355 406 508 597 622  –  –  –
Single Geared 304 355 406 610 610 660 762 863 914
Double Geared  –  – 508 558 609 660  –  –
Stroke per Minute
Ungeared 160 140 110 90 70  –  –  –
Single Geared 80 65 60 60 50 45 40 40 40
Double Geared  –  – 50 40 35 30  –  –
Motor Required
Ungeared 960 R.P.M. 0.5  1 2  3  3  –  –  –
Geared Type 1440 R.P.M. 0.5  1  2  3  3  5 7.5 10 15
Motor Pully 63 75 89 100  114 127 153 153 153
Body
Floor To Bed 620 630 765 815 815 815 815 815 815
Weight Approximately Kg. 150 300 500 1000 1400 2500 4000 5800 6500
