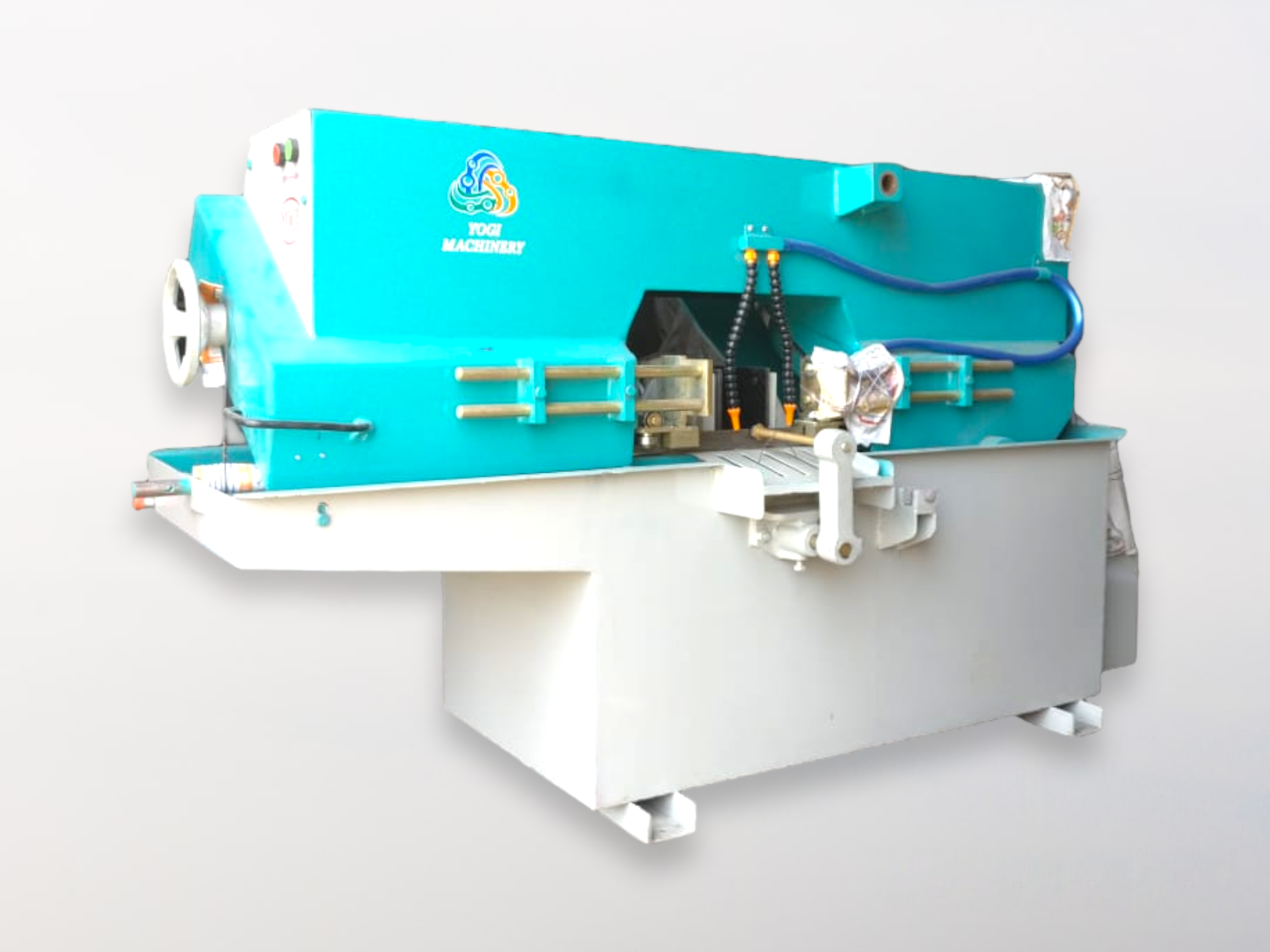

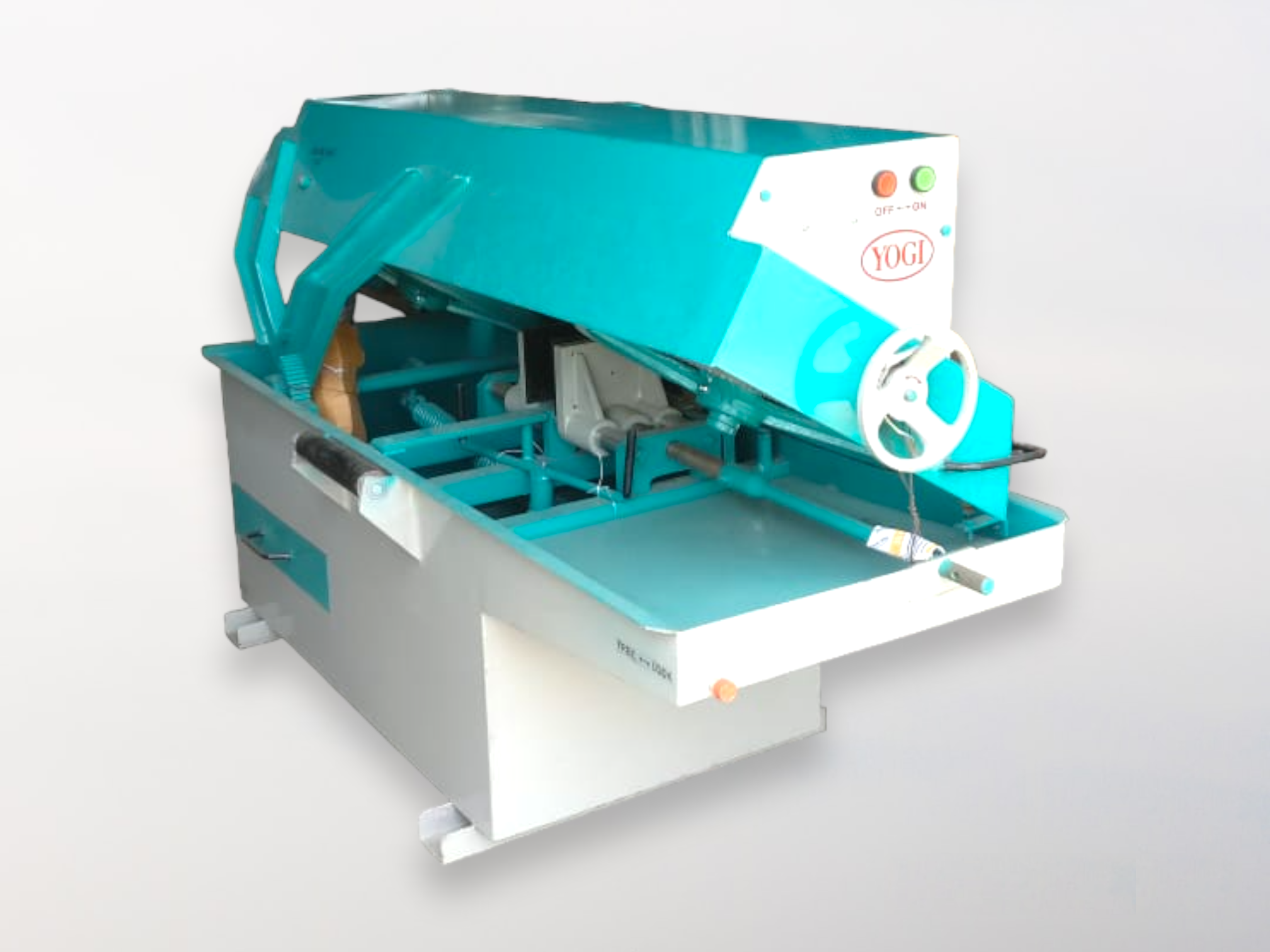

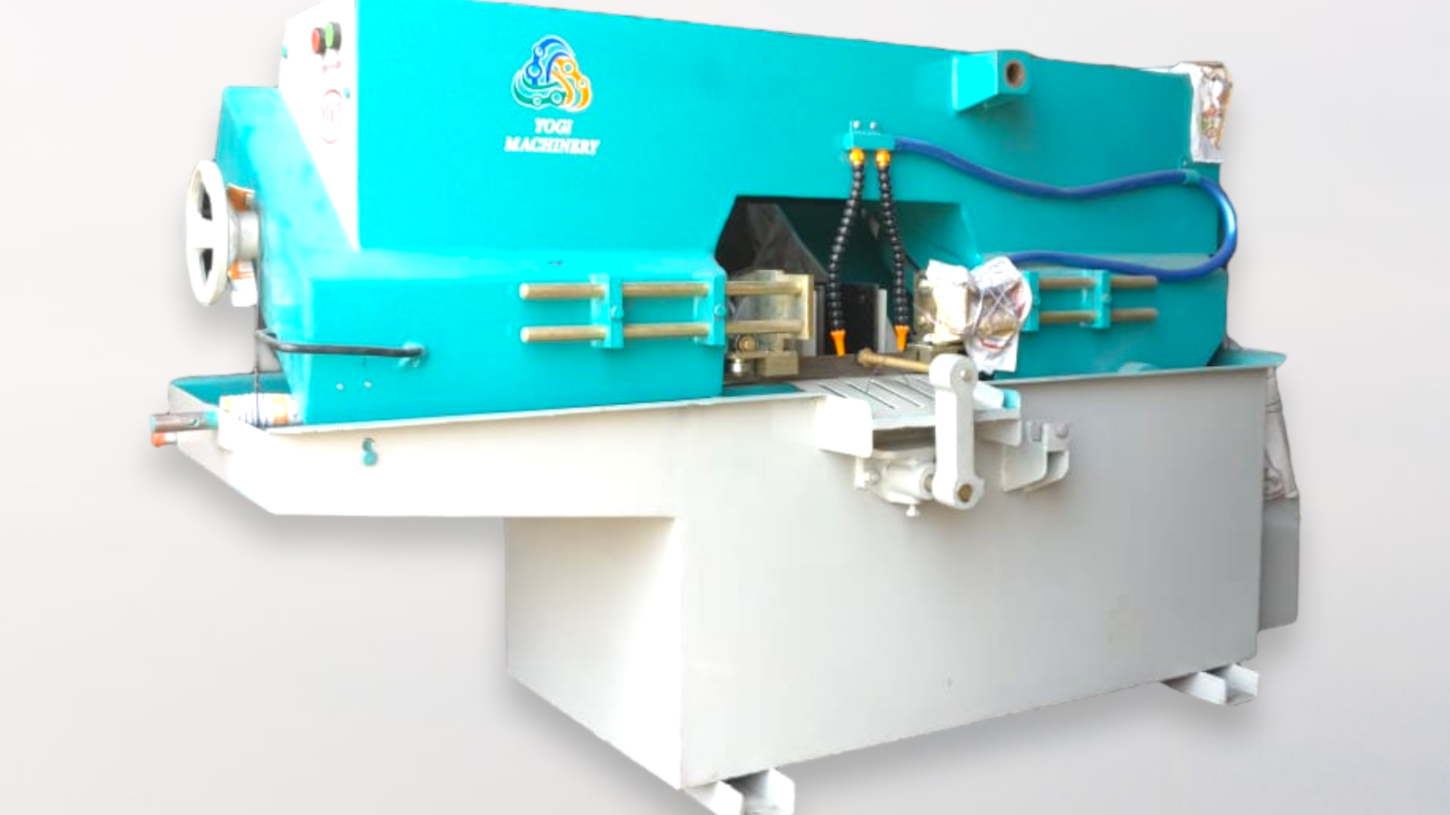

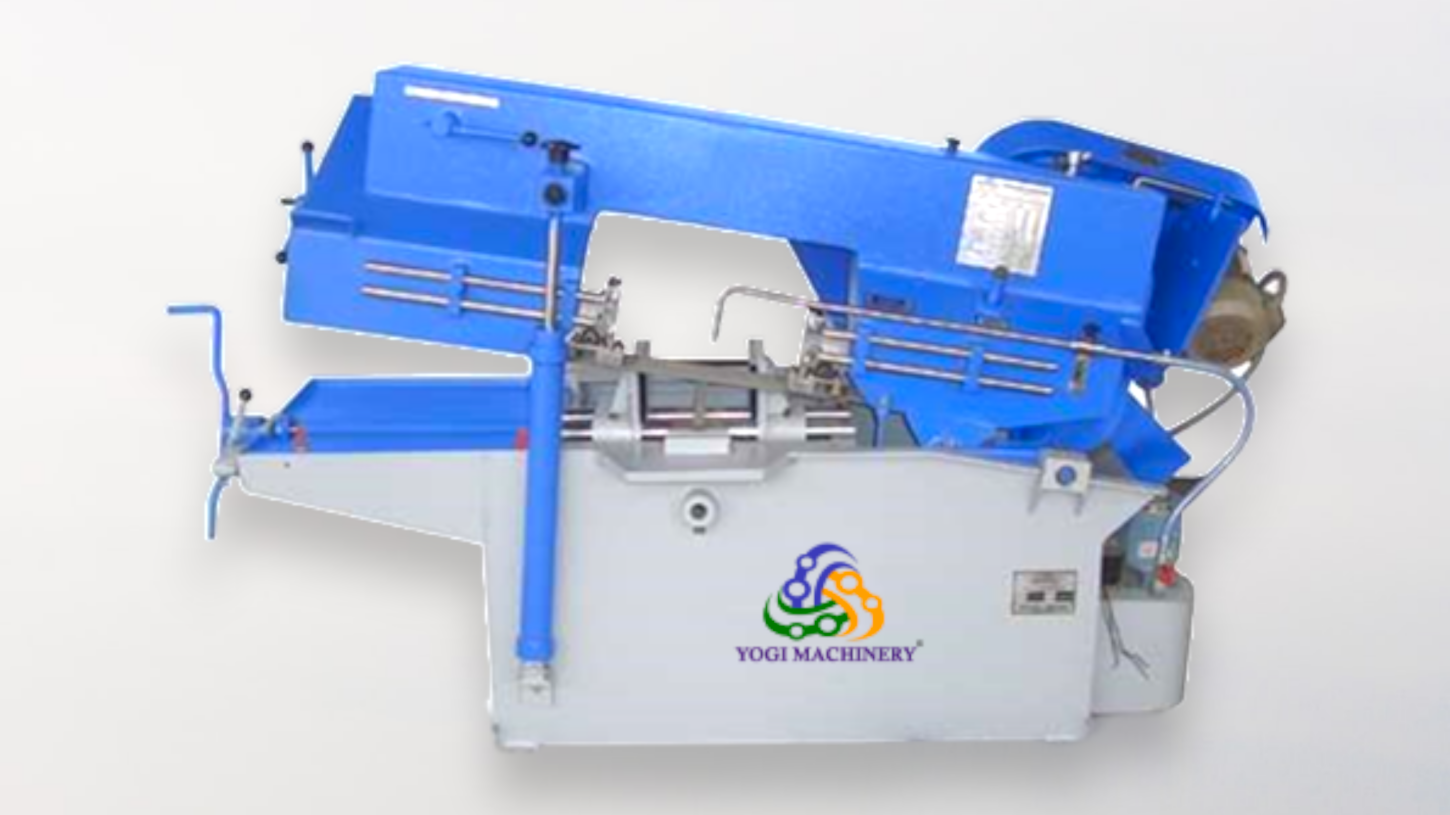

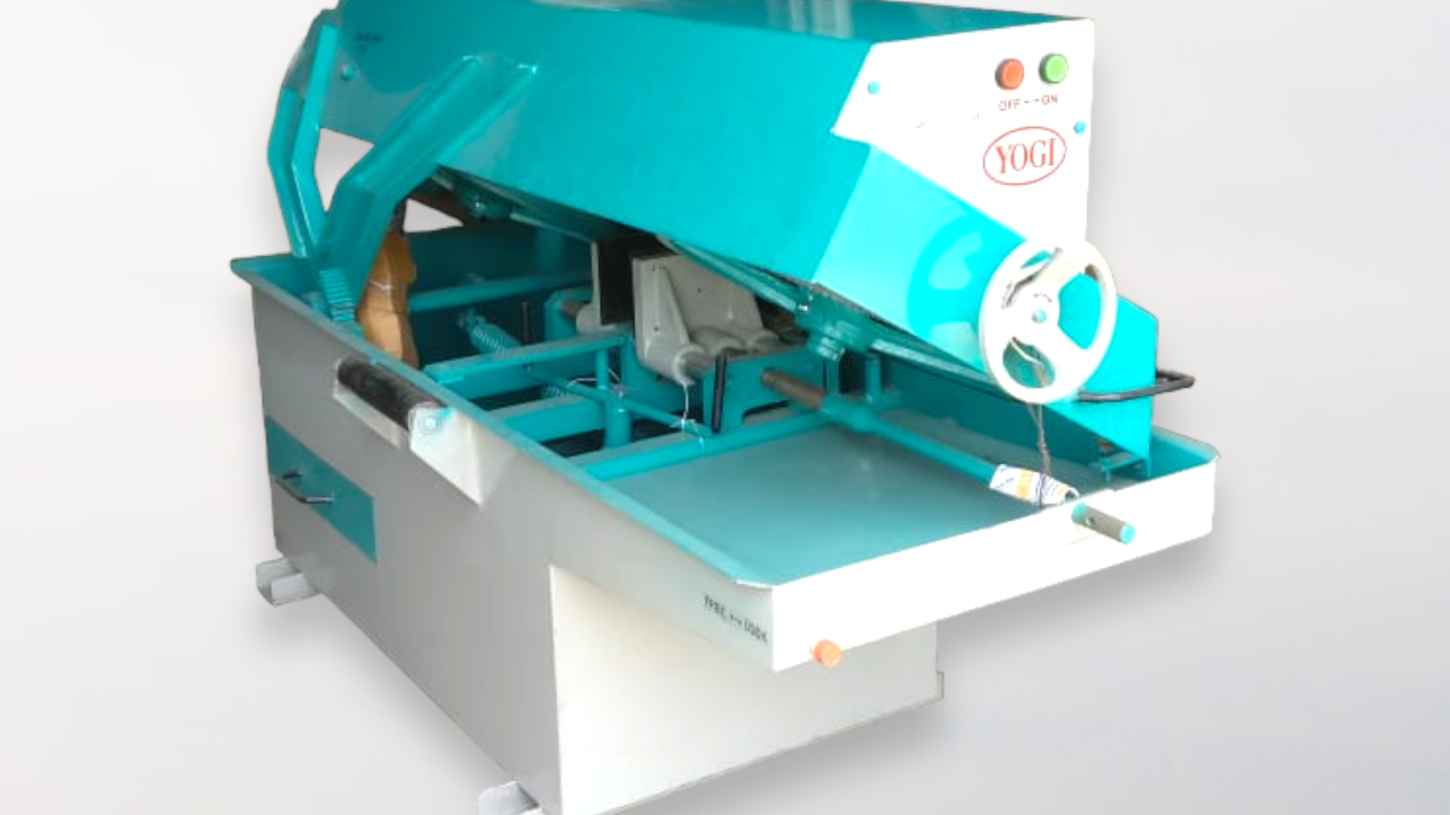

Manual Metal Cutting Bandsaw Machines

Feeding of the job, clamping-declamping & lifting of the swiveling arm after job cutting is done manually. Swiveling arm works on gravitational force for cutting operation.

The controlling of the arm cutting is done with the help of hydraulic jumper & spring. Rotating the knob on hydraulic jumper to get required feed of the arm coming down. Get the required speed of the blade by adjusting v-belt depending upon the material to be cut.

Standard Accessories

  • Saw Motor
  • Coolant Pump
  • Bimetal Blade
  • V-Belt
  • Job Stopper
  • Job Roller

Extra Accessories

  • Bimetal Bandsaw Blades M42 Grade
  • Bimetal Bandsaw Blades M51 Grade
  • Job Roller Stand (Length 1 Meter)

Optional Accessories

  • Swivel Vice Set for Degree Cutting
General Technical Specification
Model Units YMB-175 YMB – 200 YMB – 250 YMB – 300 YMB – 350 YMB – 400 YMB – 450
Cutting Cap Round MM 175 200 250 300 350 400 450
Cutting Cap Square MM 160 x 160 190 x 190 230 x 230 280 x 280 330 x 330 380 x 380 430 x 430
Machine Specifications Drive
Drive Motor HP 0.5 1 2 2 2 2 2
RPM 1440 1440 1000 1000 1000 1000 1000
Coolant Pump HP 0.15 0.15 0.15 0.15 0.15 0.15 0.15
RPM 2800 2800 2800 2800 2800 2800 2800
Blade Speed MT/M 20,30, 20,40,60, 20,40,60, 20,40,60, 20,40,60, 20,40,60, 20,40,60,
IN 40 80 80 80 80 80 80
 Saw Blade Bi-metal
Length MM 2515 3000 3530 3760 4100 4570 4570
Width MM 19 27 27 27 34 34 34
Thickness MM 0.9 0.9 0.9 0.9 1.1 1.1 1.1
Floor Space
Length MM 1651 1930 2200 2337 2516 2600 2695
Width MM 635 736 950 1016 1016 1016 1016
Height MM 1016 1016 1100 1219 1321 1372 1423
Net Weight Approx. Kg 302 365 400 465 550 660 700
Wooden Pkd. Weight App. Kg 352 415 450 525 610 720 780
