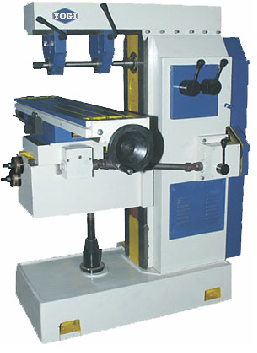

Horizontal Milling Machine Model : YHM-2

The YHM-2 Horizontal Milling Machine is designed for precision, durability, and efficiency. Engineered to handle complex milling operations, it is equipped with advanced features and a range of accessories, making it ideal for various industrial applications.

The YVM-4S Vertical Milling Machine is a comprehensive and durable solution for demanding machining needs, offering unparalleled performance and versatility.

Horizontal Milling Machine Model : YHM-2
Technical Specifications
Feature Specification
Working Surface 1100 x 280 mm
Longitudinal Feed 600 mm
Cross Feed 225 mm
Vertical Feed 400 mm
Number of Feeds 6
Spindle Speed Range 60-1000 RPM
Spindle Bore ISO-40
Arbor Diameter 25.4 mm
Motor Power 2 HP, 3-Phase
Motor Speed 1440 RPM

Included Accessories

Electrical and Control System:

  • Complete electrical setup with motors, control panel, and wiring.

Essential Attachments:

  • Long milling arbor with bushes.
  • Centralized lubrication system and chip collecting tray.

Precision Tools:

  • Digital Readout (DRO) system.
  • Milling vice and dividing head for precise operations.
  • Rotary table for enhanced versatility
I am interested

Convenience Features:

  • Coolant pump with spout assembly for smooth operation.
  • Machine lamp for better visibility.

Additional Tooling:

  • Machine vice with swivel base.
  • Self-centering vice with jaw opening.
  • Stub milling arbor (ISO 40/30).
  • Collet adaptor matching spindle taper.
  • Conical collet set with ‘C’ spanner.
  • Standard cutting tools set for initial operation.
