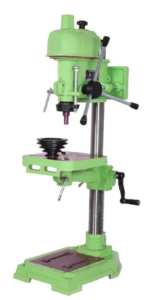

Bench Drill Machine Model : YPD-13

This Bench Drill Machine is designed for precision drilling tasks, conforming to industrial standards and ensuring high durability, efficiency, and accuracy. Built with a sturdy frame, enhanced safety features, and essential accessories, it is suitable for a wide range of applications.

This machine offers excellent value with its precision, ruggedness, and a complete accessory package. It’s ideal for workshops and manufacturing units requiring reliable drilling solutions.

Bench Drill Machine Model : YPD-13
Technical Specifications
Feature Specification
Drilling Capacity (Steel) 13 MM
Distance Center to Column 150 MM
Distance Spindle Nose to Base 490 MM
Distance Spindle Nose to Table 275 MM
Table Size 210 x 195 MM
Base Size 225 x 350 MM
Electric Motor Type 3-phase, 0.5 HP
Starter
Suitable starter supplied
Safety Features
All covers and guards included
Spindle Travel
Minimum 80 MM
Number of Spindle Speeds 4
Spindle Speed Range
135 to 2475 RPM
Spindle Run-out
Maximum 5 to 10 microns
Pillar Height 2.5 Ft.
Pillar Diameter 46.80 MM
Table Type
System and square with degree bracket
Motor Pulley Material Aluminum



Accessories:

  • Machine Vice with Handle (01 Set): 6-inch (150 MM) Jaw width.
  • One set of HSS drill bits ( 1 to 12.5 MM; 24 total).
  • One set of Carbide drill bits ( 1 MM to 10 MM; 10 total).
  • MS Stand: Floor-mounted, anti-rust powder coating.
  • Foundation bolts provided; machine installation included.
  • No vibration during operation.
  • Additional Accessories: 2 V-belts, 1 reversible switch, 2 drill chucks with keys, and adjustable LED lighting.
