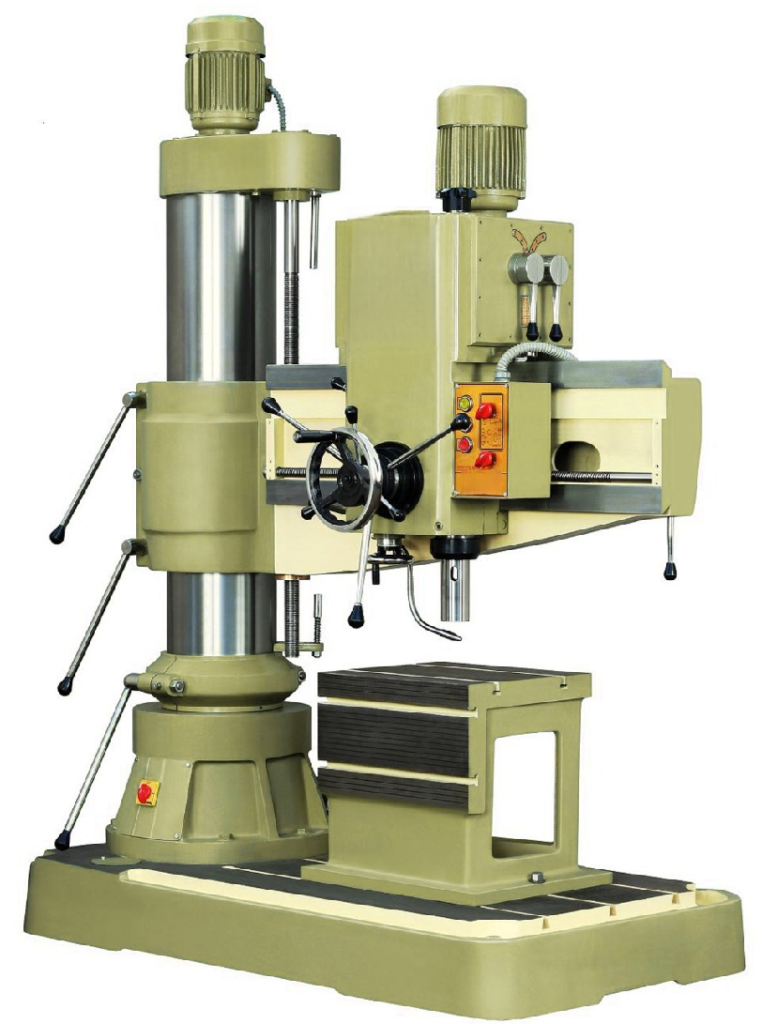

All Geared Radial Drill Machine Model : YARD-60

The YARD-60 All Geared Radial Drill Machine is a high-performance heavy-duty solution designed for precision and efficiency in industrial drilling applications. Its robust construction and advanced features make it suitable for a variety of materials, including steel, cast iron, aluminum, copper, and nylon.

Enhanced Efficiency and Safety

  • Built-in coolant system to extend tool life and ensure smooth operations.
  • Hydraulic arm locking system for secure and precise drilling.
  • Integrated machine lamp for better visibility during operations.

This versatile radial drill machine is ideal for workshops, tool rooms, and production units demanding reliability, precision, and power.  YARD-60 ensures consistent performance for a wide range of drilling, tapping, and boring tasks.



All Geared Radial Drill Machine Model : YARD-60
Technical Specifications
Feature Specification
Drilling Capacity 60 mm
Tapping Capacity (MS) Ø 48 mm
Boring Capacity (MS) Ø 90 mm
Spindle Taper MT-5
Spindle Travel 340 mm
Spindle Speeds 8 steps, 25 to 2000 RPM
Quill Feeds 8 options (0.04 to 3.2 mm/rev)
Column Diameter 350 mm
Drilling Radius (Max) 1700 mm
Drilling Radius (Min) 500 mm
Column to Spindle Center (Max) 1600 mm
Column to Spindle Center (Min) 350 mm
Horizontal Traverse 1200 mm
Vertical Traverse 850 mm
Base Plate Working Area 1500 x 920 mm
Working Box Table Size 600 x 500 x 500 mm
Base Plate Size 2600 x 1120 x 2600 mm
Main Motor Power 5 HP
Arm Motor Power 2 HP

Standard Accessories

  • Chip Collecting Tray
  • Swivel Milling Vice (150 mm)
  • Keyless Drill Chuck (16 mm)
  • Micro Boring Head with Shank
  • 52-piece Clamping Kit
  • Coolant Pump with Fittings
  • Halogen Machine Lamp
  • Centralized Lubrication System
  • Set of Bellows (2 pieces)
  • Tool Kit with Box containing
  • Standard Cutting Tools Set for Initial Operation
  • ISO 40/30 Adapter with a set of Collets (3 mm to 25 mm, 1 mm step x 23 pieces)
