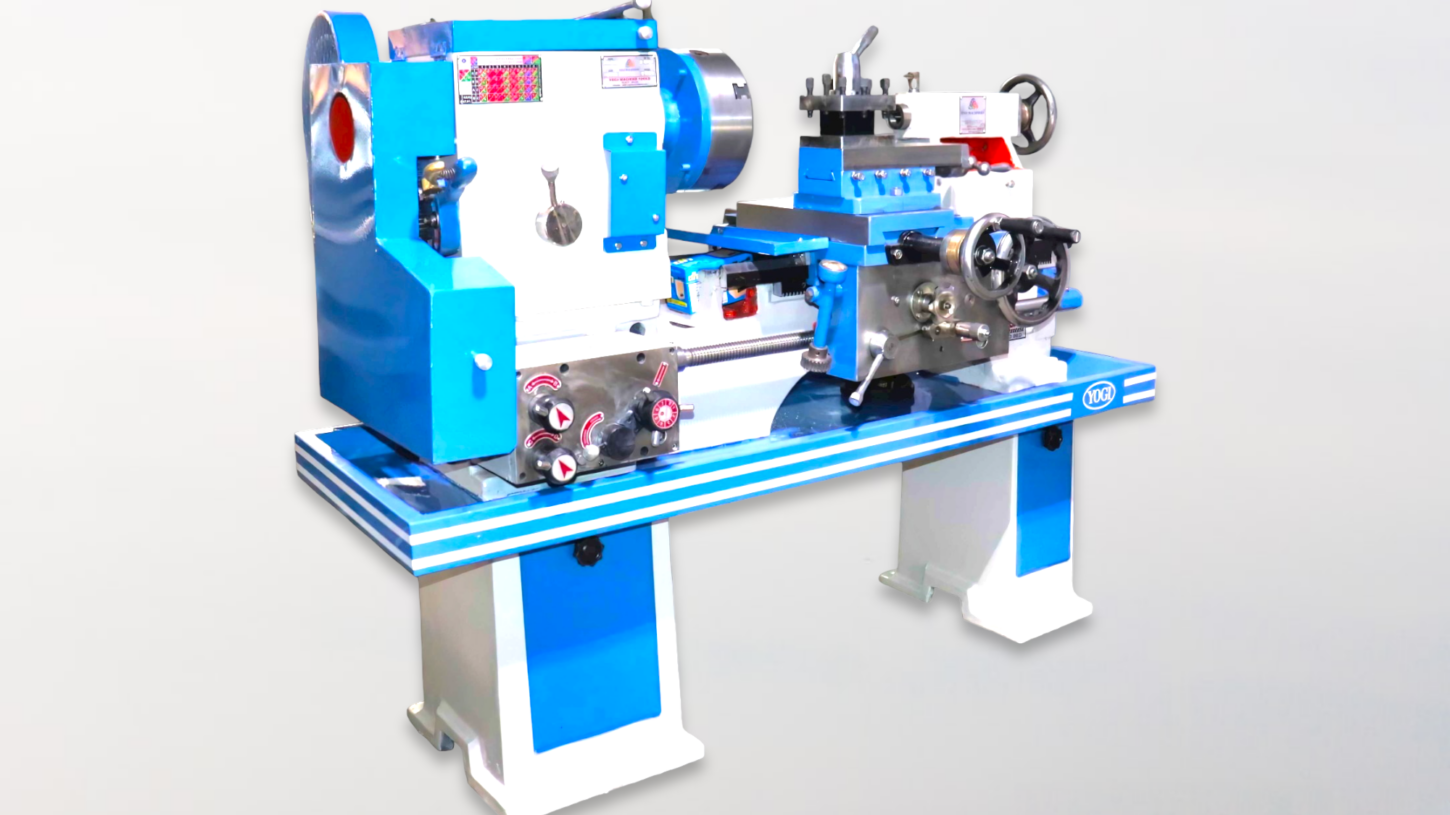

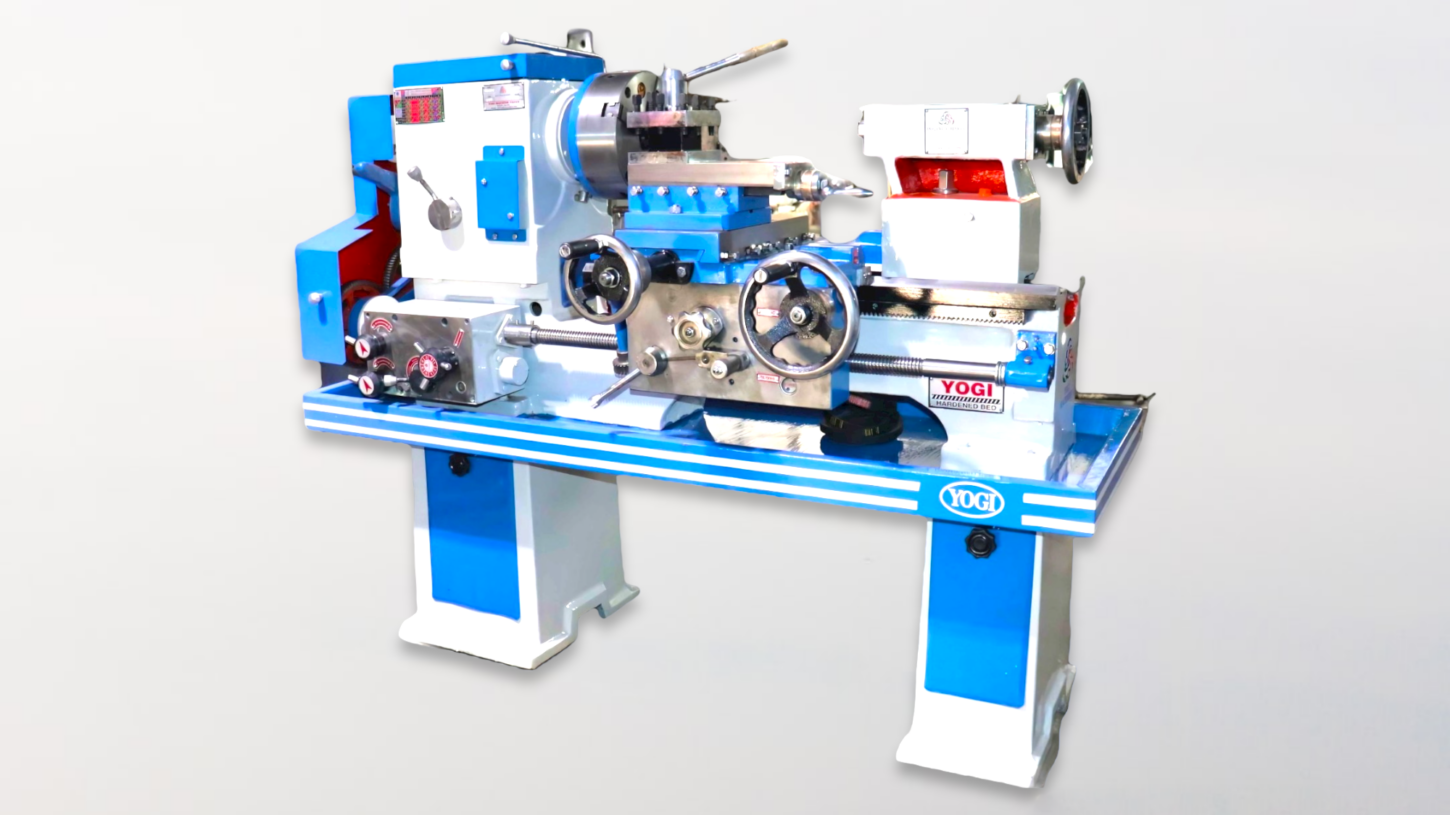

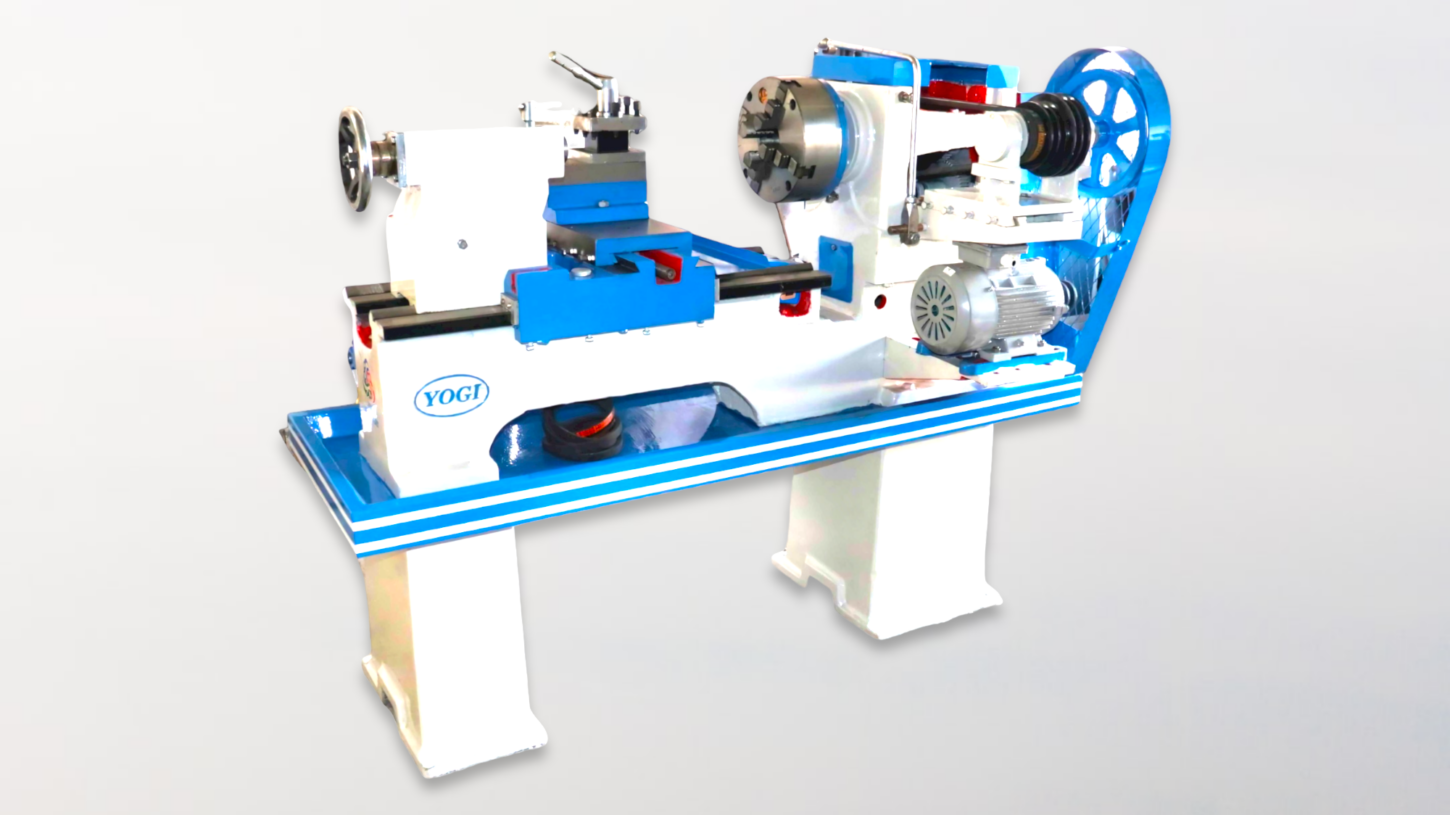

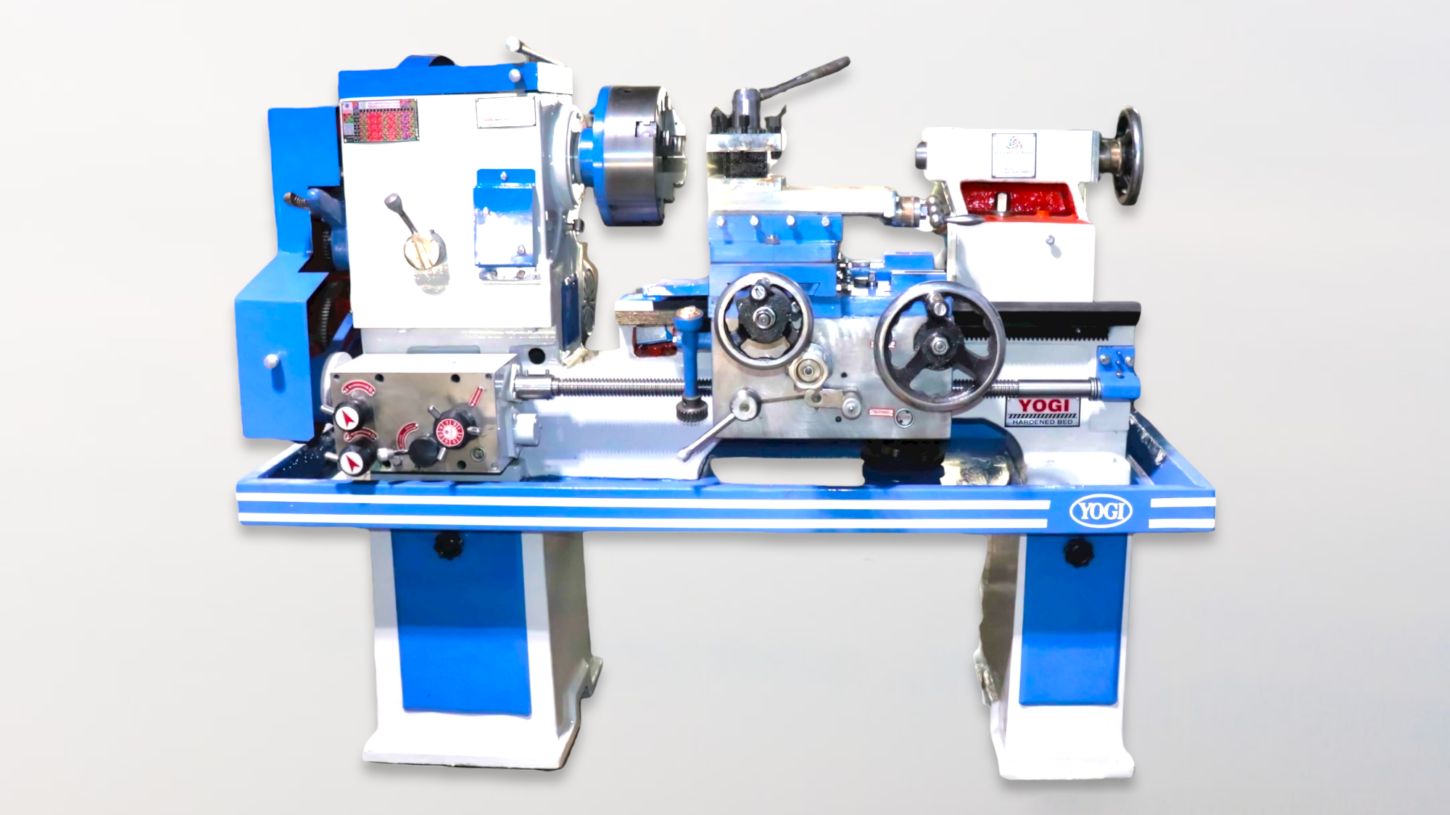

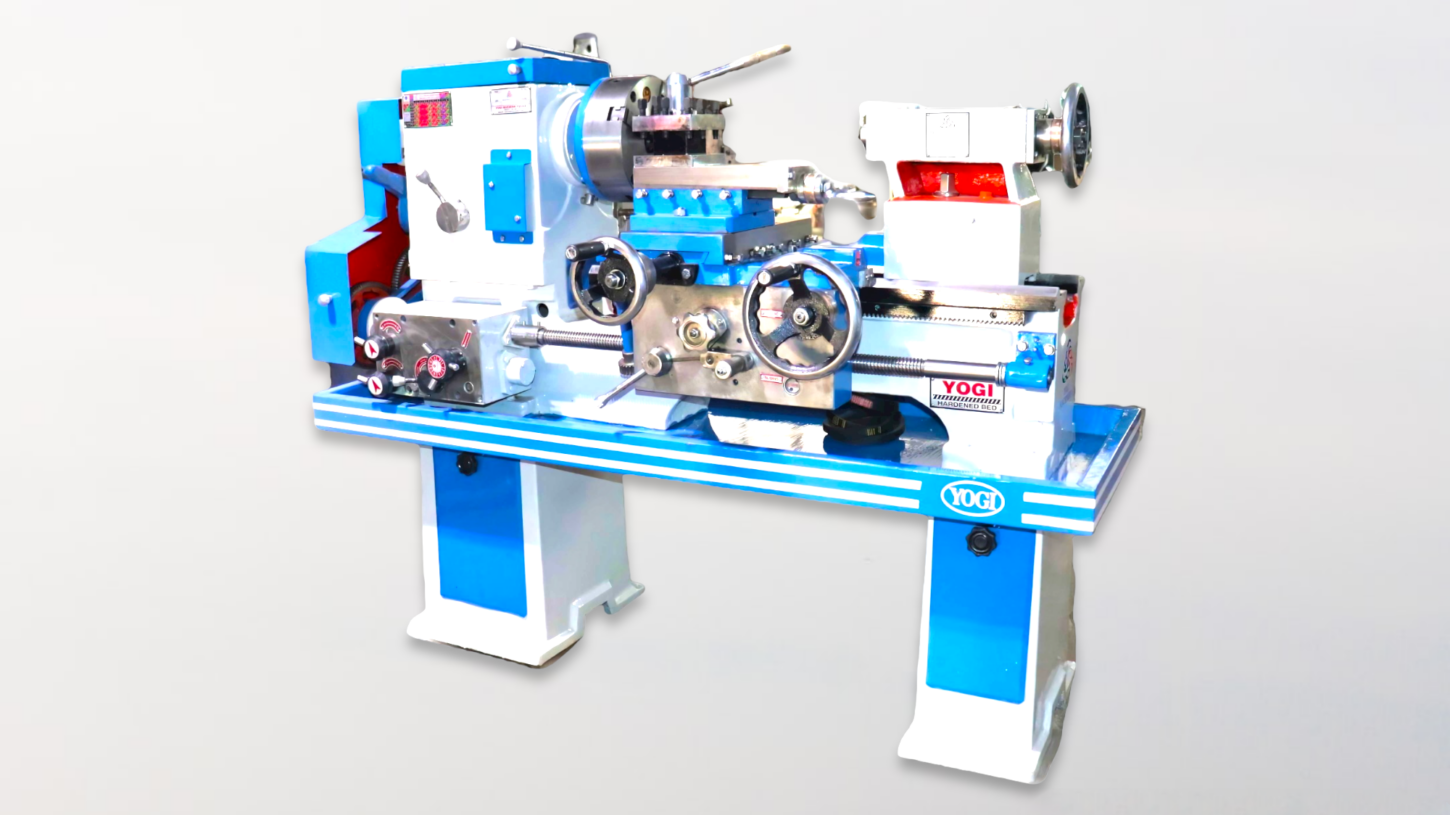

4.5 Feet Medium Duty Lathe Machine

We offer our client an excellent quality range of Industrial Machinery. Which are manufactured from high grade quality raw materials. This machine can be customised as per our precious customers specifications. This machine are widely known for its durability and quality. Our YOGI brand machine can be availed at industrial leading price.

General Technical Specification
Model YMD D4 YMD A4
Length of Bed 4.5 FEET 4.5 FEET
Height of Centre 250 MM 215 MM
Spindle Bore 52 | 80 MM 50 MM
Distance Of Between Centre 500 MM 500 MM
Width of Bed 279 MM 279 MM
Swing Over Bed 450 MM 400 MM
Swing Over Cross Slide 250 MM 225 MM
Swing in Gab 750 MM 650 MM
Available Model
Model YHD D4 / A4 Standard YHD D4 / A4 Deluxe YHD D4 / A4 Super Deluxe
Carriage Standard Carriage Heavy Carriage Heavy Carriage
Tool-Post Standard Tool-Post (4×4 Inch) Heavy Tool-Post (5×5 Inch) Heavy Tool-Post (5×5 Inch)
Compound Standard Compound (4×9 Inch) Heavy Compound (5×10.5 Inch) Heavy Compound (5×10.5 Inch)
Surface Standard Surface (7×15 Inch) Heavy Surface (8×16 Inch) Heavy Surface (8×16 Inch)
Headstock Gear CI (Cast Iron) Gear In Headstock CI (Cast Iron) Gear In Headstock MS (Mild Steel) Gear In Headstock

STANDARD ACCESSORIES
(With Machine)



Chuck Plate
Change Gear Set
Motor Pulley
Wheel Pulley
Thread Dial Indicator Gear
Tool Post Key
Square Tool Post
Reverse Forwarding Switch
Complete V Belt Set For Motor
Chip Tray (2 Non For Carriage and Surface)
Motor Belt Side Cover

EXTRA ACCESSORIES
(If Required)



Face Plate
Study Rest (3 Pin Guide)
Follow Rest (2 Pin Half Guide)
Revolving Centre
Full Norton Gear Box
True Chuck Self-Centering 3 Jaw & 4 Jaw
Dog Chuck Independent 4 Jaw
Motor Three Phase or Single Phase
Motorize Coolant Pump and Tank
Taper Turning Attachments
Grinding Attachments
Adjustable Key Way Attachments

SPECIAL FEATURES & Benefits
Induction Harden

Induction Hardened Bed Ways (Hardness : 423 to 550 BHN). Induction Hardening Method is cutting edge technology using High Electricity.

Benefits:

  • It will increase the Lifetime of Bed and Machine
  • In Induction Hardened Bed Hardness goes deep inside 3 MM to 5 MM while Frame Hardness goes only 1.5 MM.
  • Our Bed have Induction Hardened in V also, compare to Frame Hardness have very low probability of Hardness in V.
  • It gives Accurate Hardness using Induction Hardening method, while in Frame Hardening found more chances of variation.
  • In our Bed Induction Hardness is 423 to 550 BHN while frame Hardening is only 300 to 400 BHN only.
  • Frame Hardening is old age method, it uses LPG and CO2 Induction Hardening Method is cutting edge technology using Electricity.
BEARING

We are committed to use only branded Bearing like V-Cube, Turbo, SKF and Timken.

Benefits:

Bearing is the most important part of machine. It will direct impact to the smooth and accurate performance.

Spindle and RAM (Tale Stock Spindle)

We are using Induction Hardened Spindle while other manufacturers are using raw spindle.

Benefits:

• It will increase the life of spindle.
• Tale Stock Spindle Degree is hardened, so it doesn’t make any Play in it. Ultimately it helps in drilling work and high grip.

Leg

We are using Heavy Legs while other Companies are using light weight legs.

Benefits:

Total Weight and Job Weight loads on to the leg. Because of we are using Heavy Legs there is no issues such as vibration in machine.

Gunmetal Nut

We are using Gunmetal Nut in screw while others are using Casting Nut.

Benefits:

• Screw nut will have longer life time.
• There are no play issues in Gunmetal Nut while in Casting Nut within short time generates play and goes bad.

Hardened Gear in Norton Gear Box

We are manufacturing our own Hardened Gear Norton Gear Box and Shaft.

Benefits:

Hardened Gear in Norton Gear Box and Shafting gives very longer life and works for longer time period. (Note: Gear Box will fail when it’s used while running of machine or job and without putting required oiling on it.)

Heavy Tail Stock Spindle

In Yogi Machine Tools,

  • 12 Inch Centre Height 58 MM
  • 15 Inch Centre Height 63 MM
  • 18+ Inch Centre Height 75 and/or 100 MM

Benefits:

Heavy Tale Stock Spindle helps to do high speed Drilling and in Gripping of Job.

Heavy Saddle, Surface, Compound & Toolbox

In Yogi Machine Tools Lathe Machine having,
In 13-inch Bed Width
• Tool post = 6 x 6 Inch
• Surface Slide = 10 x 18 Inch
• Compound Slide = 6 x 15 Inch
• Saddle / Carriage = Heavy

Benefits:

It will help in Heavy Cut as well as during fast turning doesn’t give any kind of vibration.

MS Gear in Head Stock

Other Companies are using Casting Gear in Main Gear, Pulley Back Gear, Pipe Gear, Plunger Helical Gear and as well as every gear of casting in Headstock while We are using MS Gear in head stock.

Benefits:

  • While using slow speed and high power in double gear, it increases the life time of machine with the use of MS Gear in Head Stock
  • Casting gear turns faulty because of again and again remove of Face Plate or Chuck from spindle while it was locked in double gear
  • MS Gear have longer life time compare to Casting Gear.
Turcite Coating

We are using Turcite Coating.

Benefit:

  • It leads in to smoothness in carriage.
  • Turcite Coating gives finishing in turning also
RAW Material and Machining
  • We are only using tried and tested high quality raw material.
  • We are not using Low Grade and Faulty Casting as a raw material of machine.
  • We are going through standard procedure of machining for raw material.
  • We are continuously maintaining high standards of assembling
  • We are going through strictly Check, Try and Test for every component of machine.
  • We are using three-layer paint process on machine, also we are committed to use only branded company Colour and Putty.
  • Our Machine have high quality finishing and shining compare to other companies.
Paint & Finishing
  • We are using three-layer paint process on machine, also we are committed to use only branded company Colour and Putty.
  • Our Machine have high quality finishing and shining compare to other companies
Testing & Inspection
  • We are continuously maintaining high standards of assembling
  • We are going through strictly Check, Try and Test for every component of machine.
